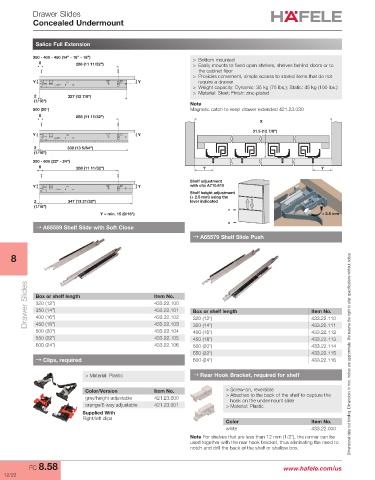

Drawer Slides
Concealed Undermount

Salice Full Extension

350 - 400 - 450 (14" - 16" - 18") > Bottom mounted
8 288 (11 11/32") > Easily mounts to fixed open shelves, shelves behind doors or to
the cabinet floor
> Provides convenient, simple access to stored items that do not
Y Y require a drawer
> Weight capacity: Dynamic: 35 kg (75 lbs.); Static: 45 kg (100 lbs.)
> Material: Steel; Finish: zinc-plated
2 327 (12 7/8")
(1/16")
Note
500 (20") Magnetic catch to keep drawer extended 421.23.030
8 288 (11 11/32")
X
31.5 (12 7/8")
Y Y

2 332 (13 5/64")
(1/16")
550 - 600 (22" - 24")
8 288 (11 11/32") Y Y
Shelf adjustment
Y Y with clip A710.610
Shelf height adjustment
(+ 2.5 mm) using the
2 347 (13 21/32") lever indicated
(1/16")
=
Y = min. 15 (9/16") + 2.5 mm
=
→ A65559 Shelf Slide with Soft Close
→ A65579 Shelf Slide Push

8

Drawer Slides Box or shelf length Item No. Box or shelf length Item No.

433.22.100
320 (12")
433.22.101
350 (14")
400 (16")
433.22.102
320 (12")
433.22.110
450 (18")
433.22.104
500 (20") 433.22.103 350 (14") 433.22.111
433.22.112
400 (16")
550 (22") 433.22.105 450 (18") 433.22.113
600 (24") 433.22.106 500 (20") 433.22.114
550 (22") 433.22.115 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Clips, required 600 (24") 433.22.116
> Material: Plastic → Rear Hook Bracket, required for shelf
Color/Version Item No. > Screw-on, reversible
gray/height adjustable 421.23.000 > Attaches to the back of the shelf to capture the
hook on the undermount slide
orange/6 way adjustable 421.23.001 > Material: Plastic
Supplied With
Right/left clips
Color Item No.
white 433.22.000
Note For shelves that are less than 12 mm (1/2"), the runner can be
used together with the rear hook bracket, thus eliminating the need to
notch and drill the back of the shelf or shallow box.

FC 8.58 www.hafele.com/us
12/22
