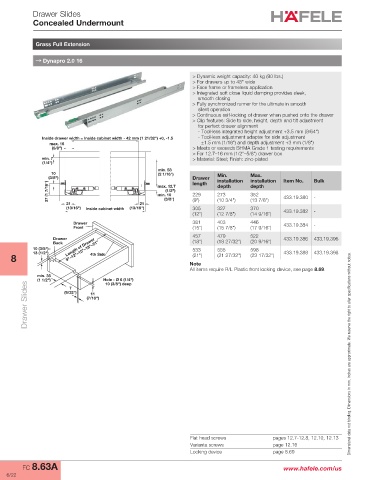

Drawer Slides
Concealed Undermount

Grass Full Extension

→ Dynapro 2.0 16

> Dynamic weight capacity: 40 kg (90 lbs.)
> For drawers up to 48" wide
> Face frame or frameless application
> Integrated soft close liquid damping provides sleek,
smooth closing
> Fully synchronized runner for the ultimate in smooth
silent operation
> Continuous self-locking of drawer when pushed onto the drawer
> Clip features: Side to side, height, depth and tilt adjustment
for perfect drawer alignment
- Tool-less integrated height adjustment +3.5 mm (9/64")
Inside drawer width = Inside cabinet width - 42 mm (1 21/32") +0, -1.5 - Tool-less adjustment adapter for side adjustment
max. 16 ±1.5 mm (1/16") and depth adjustment +3 mm (1/8")
(5/8") > Meets or exceeds BHMA Grade 1 testing requirements
> For 12.7–16 mm (1/2"–5/8") drawer box
min. 7 > Material: Steel; Finish: zinc-plated
(1/4")
min. 53
10 (2 1/16") Min. Max.
(3/8") Drawer installation installation Item No. Bulk
length
37 (1 7/16") max. 12.7 229 depth depth 433.19.380 -
(1/2")
273
352
min. 10
21 21 (3/8") (9") (10 3/4") (13 7/8")
(13/16") Inside cabinet width (13/16") 305 327 370 433.19.382 -
(12") (12 7/8") (14 9/16")
Drawer 381 403 446 433.19.384 -
Front (15") (15 7/8") (17 9/16")
457 479 522
Drawer 433.19.386 433.19.396
9"–12"–15"–18"–21"
Back (18") (18 27/32") (20 9/16")
10 (3/8")– Length of Drawer 533 555 598 433.19.388 433.19.398
13 (1/2")
8 4th Side (21") (21 27/32") (23 17/32")
Note
All items require R/L Plastic front locking device, see page 8.69.
min. 35
(1 1/2") (9/32") Hole - Ø 6 (1/4")
Drawer Slides (7/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
10 (3/8") deep
7
11

Flat head screws pages 12.7-12.8, 12.10, 12.13
Varianta screws page 12.16
Locking device page 8.69
FC 8.63A www.hafele.com/us
6/22
