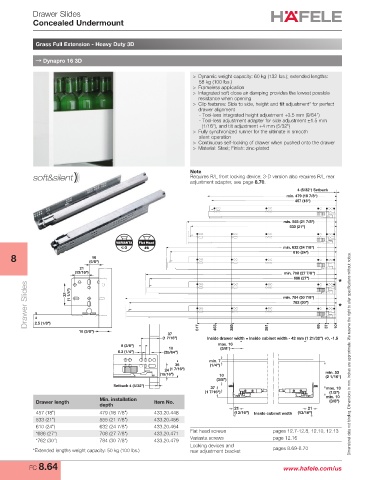

Drawer Slides
Concealed Undermount

Grass Full Extension - Heavy Duty 3D

→ Dynapro 16 3D

> Dynamic weight capacity: 60 kg (132 lbs.); extended lengths:
58 kg (100 lbs.)
> Frameless application
> Integrated soft close air damping provides the lowest possible
resistance when opening
> Clip features: Side to side, height and tilt adjustment* for perfect
drawer alignment
- Tool-less integrated height adjustment +3.5 mm (9/64")
- Tool-less adjustment adapter for side adjustment ±1.5 mm
(1/16"), and tilt adjustment +4 mm (5/32")
> Fully synchronized runner for the ultimate in smooth
silent operation
> Continuous self-locking of drawer when pushed onto the drawer
> Material: Steel; Finish: zinc-plated

Note
Requires R/L front locking device; 3-D version also requires R/L rear
adjustment adapter, see page 8.70.
4 (5/32") Setback
min. 479 (18 7/8")
457 (18")

min. 555 (21 7/8")
533 (21")

VARIANTA Flat Head
3 #6 min. 632 (24 7/8")
610 (24")
8 (5/8")
16
21
(13/16") min. 708 (27 7/8")
686 (27") *
Drawer Slides 32 (1 1/4") min. 784 (30 7/8") *

762 (30")

2.5 (1/8")
10 (3/8") 37 517 453 389 261 69 37 10
(1 7/16") Inside drawer width = Inside cabinet width - 42 mm (1 21/32") +0, -1.5
9 (3/8") 10 max. 16
6.3 (1/4") (25/64") (5/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
min. 7
36 (1/4")
24 (1 7/16")
(15/16") 10 min. 53
(2 1/16")
(3/8")
Setback 4 (5/32") 37 max. 13
(1 7/16") (1/2")
Min. installation min. 10
Drawer length Item No. (3/8")
depth
21 21
457 (18") 479 (18 7/8") 433.20.448 (13/16") Inside cabinet width (13/16")
533 (21") 555 (21 7/8") 433.20.456
610 (24") 632 (24 7/8") 433.20.464
*686 (27") 708 (27 7/8") 433.20.471 Flat head screws pages 12.7-12.8, 12.10, 12.13
*762 (30") 784 (30 7/8") 433.20.479 Varianta screws page 12.16
Locking devices and
*Extended lengths weight capacity: 50 kg (100 lbs.) rear adjustment bracket pages 8.69-8.70

FC 8.64 www.hafele.com/us
