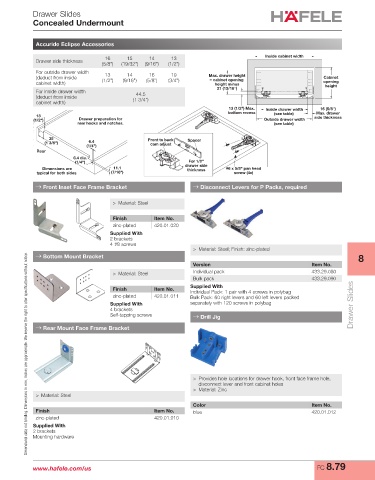

Page 755 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Concealed Undermount

Accuride Eclipse Accessories

16 15 14 13 Inside cabinet width
Drawer side thickness
(5/8") (19/32") (9/16") (1/2")
For outside drawer width 13 14 16 19
(deduct from inside (1/2") (9/16") (5/8") (3/4") Max. drawer height Cabinet
= cabinet opening
cabinet width) height minus opening
height
21 (13/16")
For inside drawer width
(deduct from inside 44.5
cabinet width) (1 3/4")
13 (1/2") Max. Inside drawer width 16 (5/8")
bottom recess (see table) Max. drawer
13 side thickness
(1/2") Drawer preparation for Outside drawer width
rear hooks and notches. (see table)
35 Front to back Spacer
(1 3/8") 6.4 cam adjust
(1/4")
Rear
6.4 dia.
(1/4") For 1/2"
Dimensions are 11.1 drawer side #6 x 5/8" pan head
thickness
typical for both sides (7/16") screw (4x)
→ Front Inset Face Frame Bracket → Disconnect Levers for P Packs, required

> Material: Steel

Finish Item No.
zinc-plated 420.01.020
Supplied With
2 brackets
4 #8 screws
> Material: Steel; Finish: zinc-plated
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Bottom Mount Bracket 8
Version Item No.
> Material: Steel Individual pack 433.29.080
Bulk pack 433.29.090
Finish Item No. Supplied With
Individual Pack: 1 pair with 4 screws in polybag
zinc-plated 420.01.011 Bulk Pack: 60 right levers and 60 left levers packed
Supplied With separately with 120 screws in polybag Drawer Slides
4 brackets
Self-tapping screws → Drill Jig
→ Rear Mount Face Frame Bracket

> Provides hole locations for drawer hook, front face frame hole,
disconnect lever and front cabinet holes
> Material: Zinc
> Material: Steel
Color Item No.
Finish Item No. blue 420.01.012
zinc-plated 420.01.010
Supplied With
2 brackets
Mounting hardware
