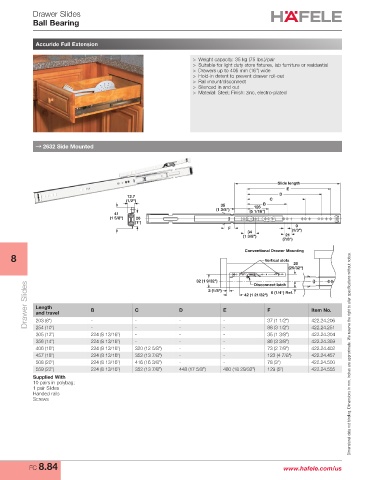

Page 760 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Accuride Full Extension

> Weight capacity: 35 kg (75 lbs.)/pair
> Suitable for light duty store fixtures, lab furniture or residential
> Drawers up to 406 mm (16") wide
> Hold-in detent to prevent drawer roll-out
> Rail mount/disconnect
> Silenced in and out
> Material: Steel; Finish: zinc, electro-plated

→ 2632 Side Mounted

Slide length
E
12.7 D
(1/2") C
35 128 B
(1 3/8") (5 1/16")
41
(1 5/8") 26
(1")
9
F (1/3")
34
(1 3/8") 21
(7/8")
Conventional Drawer Mounting
8 Vertical slots
20
(25/32")
32 (1 9/32") Disconnect latch
Drawer Slides Length B C D E 42 (1 21/32") F Item No.
3 (1/8")
6 (1/4") Ref.

and travel
203 (8")
-
422.24.251
254 (10")
88 (3 1/2")
35 (1 3/8")
-
305 (12") - - 224 (8 13/16") - - - - - - - 37 (1 1/2") 422.24.206
422.24.304
356 (14") 224 (8 13/16") - - - 86 (3 3/8") 422.24.359
406 (16") 224 (8 13/16") 320 (12 5/8") - - 73 (2 7/8") 422.24.402
457 (18") 224 (8 13/16") 352 (13 7/8") - - 123 (4 7/8") 422.24.457 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
508 (20") 224 (8 13/16") 416 (16 3/8") - - 78 (3") 422.24.500
559 (22") 224 (8 13/16") 352 (13 7/8") 448 (17 5/8") 480 (18 29/32") 129 (5") 422.24.555
Supplied With
10 pairs in polybag;
1 pair Slides
Handed rails
Screws

FC 8.84 www.hafele.com/us
