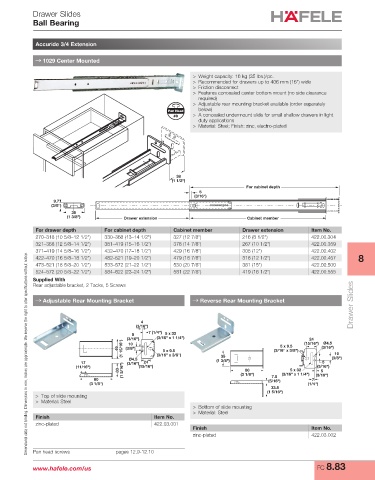

Drawer Slides
Ball Bearing

Accuride 3/4 Extension

→ 1029 Center Mounted

> Weight capacity: 16 kg (35 lbs.)/pc.
> Recommended for drawers up to 406 mm (16") wide
> Friction disconnect
> Features concealed center bottom mount (no side clearance
required)
> Adjustable rear mounting bracket available (order separately
below)
Pan Head
#8 > A concealed undermount slide for small shallow drawers in light
duty applications
> Material: Steel; Finish: zinc, electro-plated

38
(1 1/2")
For cabinet depth
5
(3/16")
9.7
(3/8")
35
(1 3/8") Drawer extension Cabinet member
For drawer depth For cabinet depth Cabinet member Drawer extension Item No.
270–318 (10 5/8–12 1/2") 330–368 (13–14 1/2") 327 (12 7/8") 216 (8 1/2") 422.00.304
321–368 (12 5/8–14 1/2") 381–419 (15–16 1/2") 378 (14 7/8") 267 (10 1/2") 422.00.359
371–419 (14 5/8–16 1/2") 432–470 (17–18 1/2") 429 (16 7/8") 305 (12") 422.00.402
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
422–470 (16 5/8–18 1/2") 482–521 (19–20 1/2") 479 (18 7/8") 318 (12 1/2") 422.00.457 8
473–521 (18 5/8–20 1/2") 533–572 (21–22 1/2") 530 (20 7/8") 381 (15") 422.00.500
524–572 (20 5/8–22 1/2") 584–622 (23–24 1/2") 581 (22 7/8") 419 (16 1/2") 422.00.555
Supplied With
Drawer Slides
Rear adjustable bracket, 2 Tacks, 5 Screws

→ Adjustable Rear Mounting Bracket → Reverse Rear Mounting Bracket

4
(3/16")
5 7 (1/4") 5 x 32
24
(3/16") (3/16" x 1 1/4") (15/16") Ø4.5
(1 15/16") (3/8") 5 x 9.5 (3/16")
10
49 (3/16" x 3/8") (3/16" x 3/8") 10
5 x 9.5
35
Ø4.5
17 (3/16") 24 (1 3/8") 5 (3/8")
(11/16") (15/16") (3/16")
5 x 32
80
33 (1 5/16") (3 1/8") (3/16" x 1 1/4") 5
7.5
80 (5/16") 7 (3/16")
(3 1/8") (1/4")
33.5
(1 5/16")
> Top of slide mounting
> Material: Steel
> Bottom of slide mounting
> Material: Steel
Finish Item No.
zinc-plated 422.03.001
Finish Item No.
zinc-plated 422.03.002
Pan head screws pages 12.9-12.10
www.hafele.com/us FC 8.83
