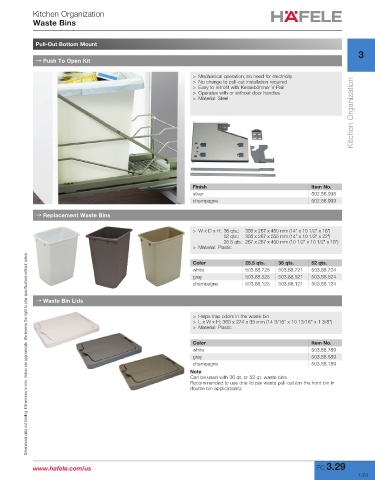

Page 43 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Waste Bins

Pull-Out Bottom Mount
3
→ Push To Open Kit

> Mechanical operation; no need for electricity
Kitchen Organization
> No change to pull-out installation required
> Easy to retrofit with Kesseböhmer V-Rail
> Operates with or without door handles
> Material: Steel

Finish Item No.
silver 502.56.998
champagne 502.56.999

→ Replacement Waste Bins

> W x D x H: 36 qts.: 356 x 267 x 450 mm (14" x 10 1/2" x 18")
52 qts.: 356 x 267 x 555 mm (14" x 10 1/2" x 22")
25.5 qts.: 267 x 267 x 450 mm (10 1/2" x 10 1/2" x 18")
> Material: Plastic
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Color 25.5 qts. 36 qts. 52 qts.
white 503.88.725 503.88.721 503.88.724
gray 503.88.525 503.88.521 503.88.524
champagne 503.88.125 503.88.121 503.88.124

→ Waste Bin Lids

> Helps trap odors in the waste bin
> L x W x H: 360 x 274 x 35 mm (14 3/16" x 10 13/16" x 1 3/8")
> Material: Plastic

Color Item No.
white 503.88.789
gray 503.88.589
champagne 503.88.189
Note
Can be used with 36 qt. or 52 qt. waste bins.
Recommended to use one lid per waste pull-out (on the front bin in
double bin applications).

www.hafele.com/us FC 3.29
1/23
