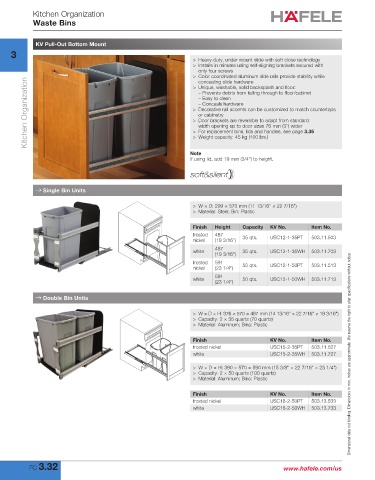

Page 46 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Waste Bins

KV Pull-Out Bottom Mount
3
> Heavy-duty, under mount slide with soft close technology
> Installs in minutes using self-aligning brackets secured with
only four screws
> Color coordinated aluminum side rails provide stability while
Kitchen Organization – Easy to clean
concealing slide hardware
> Unique, washable, solid backsplash and floor:
– Prevents debris from falling through to floor/cabinet
– Conceals hardware
> Decorative rail accents can be customized to match countertops
or cabinetry
> Door brackets are reversible to adapt from standard
width opening up to door sizes 76 mm (3") wider
> For replacement bins, lids and handles, see page 3.35
> Weight capacity: 45 kg (100 lbs.)

Note
If using lid, add 19 mm (3/4") to height.

→ Single Bin Units

> W × D: 299 × 570 mm (11 13/16" × 22 7/16")
> Material: Steel; Bin: Plastic

Finish Height Capacity KV No. Item No.
frosted 487 35 qts. USC12-1-35PT 503.11.503
nickel (19 3/16")
487
white (19 3/16") 35 qts. USC12-1-35WH 503.11.703
frosted 591
nickel (23 1/4") 50 qts. USC12-1-50PT 503.11.513
white 591 50 qts. USC12-1-50WH 503.11.713
(23 1/4")

→ Double Bin Units

> W × D × H: 376 × 570 × 487 mm (14 13/16" × 22 7/16" × 19 3/16")
> Capacity: 2 × 35 quarts (70 quarts)
> Material: Aluminum; Bins: Plastic

Finish KV No. Item No.
frosted nickel USC15-2-35PT 503.11.527
white USC15-2-35WH 503.11.727 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> W × D × H: 390 × 570 × 590 mm (15 3/8" × 22 7/16" × 23 1/4")
> Capacity: 2 × 50 quarts (100 quarts)
> Material: Aluminum; Bins: Plastic

Finish KV No. Item No.
frosted nickel USC18-2-50PT 503.13.533
white USC18-2-50WH 503.13.733

FC 3.32 www.hafele.com/us
