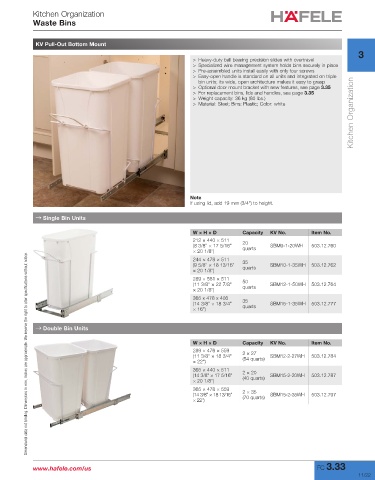

Kitchen Organization
Waste Bins

KV Pull-Out Bottom Mount
3
> Heavy-duty ball bearing precision slides with overtravel
> Specialized wire management system holds bins securely in place
> Pre-assembled units install easily with only four screws
> Easy-open handle is standard on all units and integrated on triple
Kitchen Organization
bin units; its wide, open architecture makes it easy to grasp
> Optional door mount bracket with new features, see page 3.35
> For replacement bins, lids and handles, see page 3.35
> Weight capacity: 36 kg (80 lbs.)
> Material: Steel; Bins: Plastic; Color: white

Note
If using lid, add 19 mm (3/4") to height.

→ Single Bin Units

W × H × D Capacity KV No. Item No.
212 × 440 × 511 20
(8 3/8" × 17 5/16" quarts SBM9-1-20WH 503.12.760
× 20 1/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
244 × 478 × 511
(9 5/8" × 18 13/16" 35 SBM10-1-35WH 503.12.762
× 20 1/8") quarts
289 × 581 × 511 50
(11 3/8" × 22 7/8" quarts SBM12-1-50WH 503.12.764
× 20 1/8")
365 x 478 x 406
(14 3/8" × 18 3/4" 35 SBM15-1-35WH 503.12.777
× 16") quarts

→ Double Bin Units

W × H × D Capacity KV No. Item No.
289 × 476 × 559 2 × 27
(11 3/8” × 18 3/4" (54 quarts) SBM12-2-27WH 503.12.784
× 22")
365 × 440 × 511
(14 3/8" × 17 5/16" 2 × 20 SBM15-2-20WH 503.12.787
× 20 1/8") (40 quarts)
365 × 478 × 559 2 × 35
(14 3/8" × 18 13/16" (70 quarts) SBM15-2-35WH 503.12.797
× 22")

www.hafele.com/us FC 3.33
11/22
