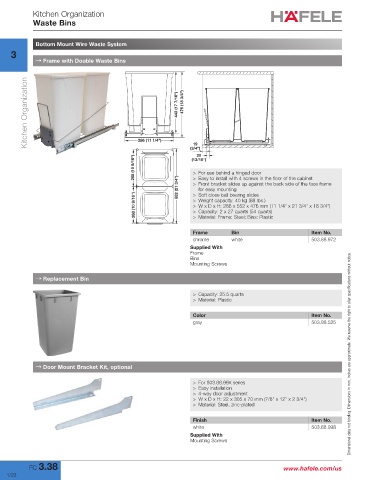

Page 52 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Waste Bins

Bottom Mount Wire Waste System
3
→ Frame with Double Waste Bins

Kitchen Organization 286 (11 1/4") 443 (17 7/16") 476 (18 3/4")

19
20
268 (10 9/16") (3/4")
(13/16")
> For use behind a hinged door
> Easy to install with 4 screws in the floor of the cabinet
> Front bracket slides up against the back side of the face frame
> Soft close ball bearing slides
268 (10 9/16") 552 (21 3/4") for easy mounting
> Weight capacity: 40 kg (88 lbs.)
> W x D x H: 286 x 552 x 476 mm (11 1/4" x 21 3/4" x 18 3/4")
> Capacity: 2 x 27 quarts (54 quarts)
> Material: Frame: Steel; Bins: Plastic

Frame Bin Item No.
chrome white 503.88.972
Supplied With
Frame
Bins
Mounting Screws

→ Replacement Bin

> Capacity: 25.5 quarts
> Material: Plastic

Color Item No.
gray 503.88.525

→ Door Mount Bracket Kit, optional Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> For 503.88.99X series
> Easy installation
> 4-way door adjustment
> W x D x H: 22 x 305 x 70 mm (7/8" x 12" x 2 3/4")
> Material: Steel, zinc-plated

Finish Item No.
white 503.88.998
Supplied With
Mounting Screws

FC 3.38 www.hafele.com/us
1/23
