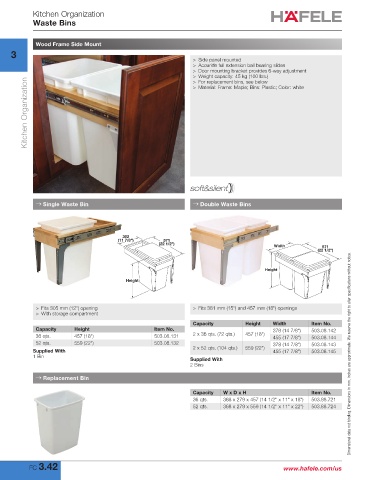

Page 56 - Furniture Cabinetry Hardware-FloorKitchenResource.com
P. 56
Kitchen Organization
Waste Bins
Wood Frame Side Mount
3
> Side panel mounted
> Accuride full extension ball bearing slides
> Door mounting bracket provides 6-way adjustment
> Weight capacity: 45 kg (100 lbs.)
Kitchen Organization
> For replacement bins, see below
> Material: Frame: Maple; Bins: Plastic; Color: white
→ Single Waste Bin → Double Waste Bins
302
(11 7/8") 571
(22 1/2") Width 571
(22 1/2")
Height
Height
> Fits 305 mm (12") opening > Fits 381 mm (15") and 457 mm (18") openings
> With storage compartment
Capacity Height Width Item No.
Capacity Height Item No. 378 (14 7/8") 503.08.142
36 qts. 457 (18") 503.08.131 2 x 36 qts. (72 qts.) 457 (18") 455 (17 7/8") 503.08.144
52 qts. 559 (22") 503.08.132 378 (14 7/8") 503.08.143
Supplied With 2 x 52 qts. (104 qts.) 559 (22") 455 (17 7/8") 503.08.145
1 Bin Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Supplied With
2 Bins
→ Replacement Bin
Capacity W x D x H Item No.
36 qts. 368 x 279 x 457 (14 1/2" x 11" x 18") 503.88.721
52 qts. 368 x 279 x 559 (14 1/2" x 11" x 22") 503.88.724
FC 3.42 www.hafele.com/us
