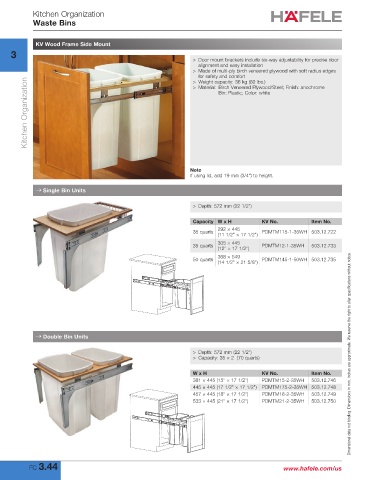

Page 58 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Waste Bins

KV Wood Frame Side Mount
3
> Door mount brackets include six-way adjustability for precise door
alignment and easy installation
> Made of multi-ply birch veneered plywood with soft radius edges
for safety and comfort
Kitchen Organization
> Weight capacity: 36 kg (80 lbs.)
> Material: Birch Veneered Plywood/Steel; Finish: anochrome
Bin: Plastic; Color: white

Note
If using lid, add 19 mm (3/4") to height.

→ Single Bin Units

> Depth: 572 mm (22 1/2")

Capacity W x H KV No. Item No.
292 × 445
35 quarts PDMTM115-1-35WH 503.12.722
(11 1/2" × 17 1/2")
305 × 445
35 quarts PDMTM12-1-35WH 503.12.733
(12" × 17 1/2")
368 × 549
50 quarts PDMTM145-1-50WH 503.12.735
(14 1/2" × 21 5/8")

→ Double Bin Units

> Depth: 572 mm (22 1/2") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Capacity: 35 × 2 (70 quarts)

W x H KV No. Item No.
381 × 445 (15" × 17 1/2") PDMTM15-2-35WH 503.12.746
445 × 445 (17 1/2" × 17 1/2") PDMTM175-2-35WH 503.12.748
457 × 445 (18" × 17 1/2") PDMTM18-2-35WH 503.12.749
533 × 445 (21" × 17 1/2") PDMTM21-2-35WH 503.12.750

FC 3.44 www.hafele.com/us
