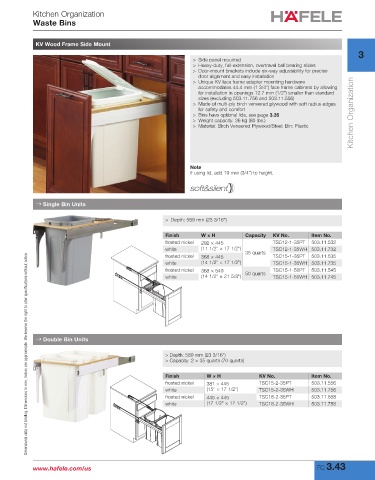

Page 57 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Waste Bins

KV Wood Frame Side Mount
3
> Side panel mounted
> Heavy-duty, full-extension, overtravel ball bearing slides
> Door-mount brackets include six-way adjustability for precise
door alignment and easy installation
> Unique KV face frame adapter mounting hardware
accommodates 44.4 mm (1 3/4") face frame cabinets by allowing
for installation in openings 12.7 mm (1/2") smaller than standard
sizes (excluding 503.11.756 and 503.11.556)
> Made of multi-ply birch veneered plywood with soft radius edges
for safety and comfort
> Bins have optional lids, see page 3.35 Kitchen Organization
> Weight capacity: 36 kg (80 lbs.)
> Material: Birch Veneered Plywood/Steel; Bin: Plastic

Note
If using lid, add 19 mm (3/4") to height.

→ Single Bin Units

> Depth: 589 mm (23 3/16")

Finish W × H Capacity KV No. Item No.
frosted nickel 292 × 445 TSC12-1-35PT 503.11.532
white (11 1/2" × 17 1/2") 35 quarts TSC12-1-35WH 503.11.732
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
frosted nickel 368 × 445 TSC15-1-35PT 503.11.535
white (14 1/2" × 17 1/2") TSC15-1-35WH 503.11.735
frosted nickel 368 × 549 50 quarts TSC15-1-50PT 503.11.545
white (14 1/2" × 21 5/8") TSC15-1-50WH 503.11.745

→ Double Bin Units

> Depth: 589 mm (23 3/16")
> Capacity: 2 × 35 quarts (70 quarts)

Finish W × H KV No. Item No.
frosted nickel 381 × 445 TSC15-2-35PT 503.11.556
white (15" × 17 1/2") TSC15-2-35WH 503.11.756
frosted nickel 445 × 445 TSC18-2-35PT 503.11.558
white (17 1/2" × 17 1/2") TSC18-2-35WH 503.11.758

www.hafele.com/us FC 3.43
