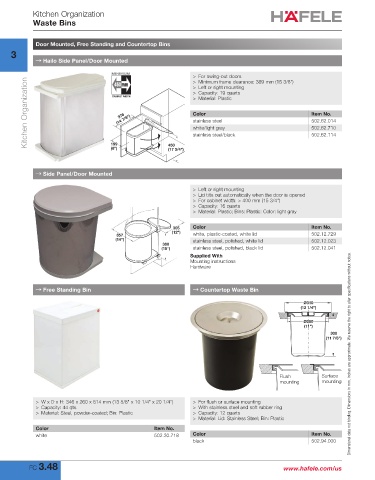

Kitchen Organization
Waste Bins
MINIMUM
280mm
CABINET
Door Mounted, Free Standing and Countertop Bins
WIDTH
MINIMUM MINIMUM MINIMUM
3
→ Hailo Side Panel/Door Mounted
CABINET WIDTH CABINET WIDTH CABINET WIDTH
MINIMUM MINIMUM > For swing-out doors
Kitchen Organization CABINET WIDTH CABINET WIDTH > Material: Plastic Item No.
> Minimum frame clearance: 389 mm (15 3/8")
> Left or right mounting
> Capacity: 19 quarts

Color
376
(14 7/8")
502.62.014
stainless steel
white/light gray
502.62.710
stainless steel/black
502.62.114
(8")
(17 3/4")
→ Side Panel/Door Mounted 199 450

> Left or right mounting
> Lid tilts out automatically when the door is opened
> For cabinet width: > 400 mm (15 3/4")
> Capacity: 16 quarts
> Material: Plastic; Bins: Plastic: Color: light gray

305 Color Item No.
(12")
357 white, plastic-coated, white lid 502.12.729
(14") stainless steel, polished, white lid 502.12.023
380
(15") stainless steel, polished, black lid 502.12.041
Supplied With
Mounting instructions
Hardware

→ Free Standing Bin → Countertop Waste Bin

Ø310
(12 1/4")

Ø280
(11")
300
(11 7/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Flush Surface
mounting mounting

> W x D x H: 346 x 260 x 514 mm (13 5/8" x 10 1/4" x 20 1/4") > For flush or surface mounting
> Capacity: 44 qts. > With stainless steel and soft rubber ring
> Material: Steel, powder-coated; Bin: Plastic > Capacity: 12 quarts
> Material: Lid: Stainless Steel; Bin: Plastic
Color Item No.
white 502.30.718 Color Item No.
black 502.94.000

FC 3.48 www.hafele.com/us
