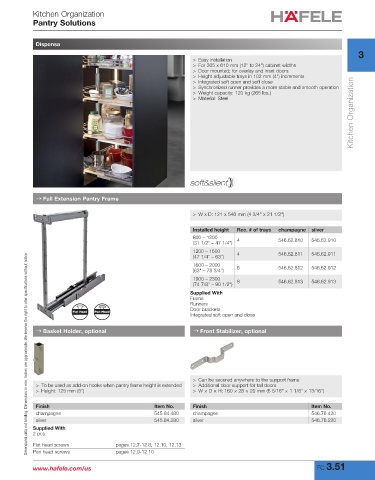

Kitchen Organization
Pantry Solutions

Dispensa
3
> Easy installation
> For 305 x 610 mm (12" to 24") cabinet widths
> Door mounted; for overlay and inset doors
> Height adjustable trays in 102 mm (4") increments
Kitchen Organization
> Integrated soft open and soft close
> Synchronized runner provides a more stable and smooth operation
> Weight capacity: 120 kg (265 lbs.)
> Material: Steel

→ Full Extension Pantry Frame

> W x D: 121 x 546 mm (4 3/4" x 21 1/2")

Installed height Rec. # of trays champagne silver
800 – 1200
(31 1/2" – 47 1/4") 4 546.62.810 546.62.910
1200 – 1600 4 546.62.811 546.62.911
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(47 1/4" – 63")
1600 – 2000
(63" – 78 3/4") 6 546.62.812 546.62.912
1900 – 2300 8 546.62.813 546.62.913
(74 7/8" – 90 1/2")
Supplied With
Frame
Runners
Door brackets
Flat Head Pan Head
Integrated soft open and close

→ Basket Holder, optional → Front Stabilizer, optional

> Can be secured anywhere to the support frame
> To be used as add-on hooks when pantry frame height is extended > Additional door support for tall doors
> Height: 125 mm (5") > W × D × H: 160 × 28 × 20 mm (6 5/16" × 1 1/8" × 13/16")

Finish Item No. Finish Item No.
champagne 545.84.480 champagne 546.76.420
silver 545.84.280 silver 546.76.220
Supplied With
2 pcs.
Flat head screws pages 12.7-12.8, 12.10, 12.13
Pan head screws pages 12.9-12.10

www.hafele.com/us FC 3.51
