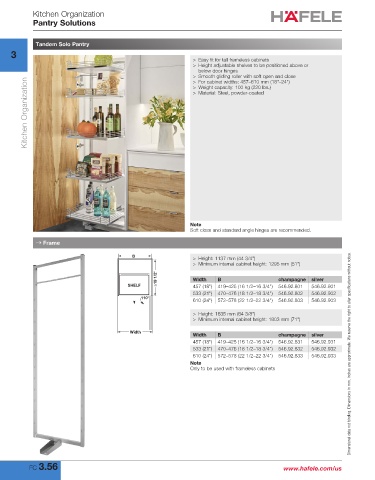

Page 72 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Pantry Solutions

Tandem Solo Pantry
3
> Easy fit for tall frameless cabinets
> Height adjustable shelves to be positioned above or
below door hinges
> Smooth gliding roller with soft open and close
Kitchen Organization
> For cabinet widths: 457–610 mm (18"–24")
> Weight capacity: 100 kg (220 lbs.)
> Material: Steel, powder-coated

Note
Soft close and standard angle hinges are recommended.

→ Frame

B > Height: 1137 mm (44 3/4")
> Minimum internal cabinet height: 1295 mm (51")
≥19 1/2" Width B champagne silver

SHELF 457 (18") 419–425 (16 1/2–16 3/4") 546.92.801 546.92.901
533 (21") 470–476 (18 1/2–18 3/4") 546.92.802 546.92.902
110°
610 (24") 572–578 (22 1/2–22 3/4") 546.92.803 546.92.903
> Height: 1635 mm (64 3/8")
> Minimum internal cabinet height: 1803 mm (71")

Width
Width B champagne silver
457 (18") 419–425 (16 1/2–16 3/4") 546.92.831 546.92.931
533 (21") 470–476 (18 1/2–18 3/4") 546.92.832 546.92.932
610 (24") 572–578 (22 1/2–22 3/4") 546.92.833 546.92.933 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Note
Only to be used with frameless cabinets

FC 3.56 www.hafele.com/us
