Kitchen Organization
Pantry Solutions

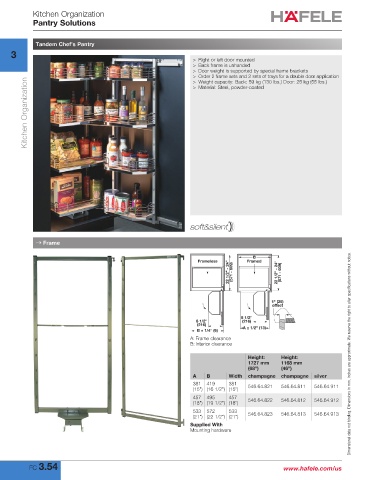

Tandem Chef’s Pantry
3
> Right or left door mounted
> Back frame is unhanded
> Door weight is supported by special frame brackets
> Order 2 frame sets and 2 sets of trays for a double door application
Kitchen Organization
> Weight capacity: Back: 59 kg (130 lbs.) Door: 25 kg (55 lbs.)
> Material: Steel, powder-coated

→ Frame

B
Frameless Framed
22 1/2" - 24" (571 - 609) 22 1/2" - 24" (571 - 609)

1" (25)
offset
8 1/2"
8 1/2" (216)
(216)
B ± 1/4" (6) A ± 1/2" (13)
A: Frame clearance
B: Interior clearance
Height: Height: Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
1727 mm 1168 mm
(68") (46")
A B Width champagne champagne silver
381 419 381 546.64.821 546.64.811 546.64.911
(15") (16 1/2") (15")
457 495 457
(18") (19 1/2") (18") 546.64.822 546.64.812 546.64.912
533 572 533 546.64.823 546.64.813 546.64.913
(21") (22 1/2") (21")
Supplied With
Mounting hardware

FC 3.54 www.hafele.com/us
