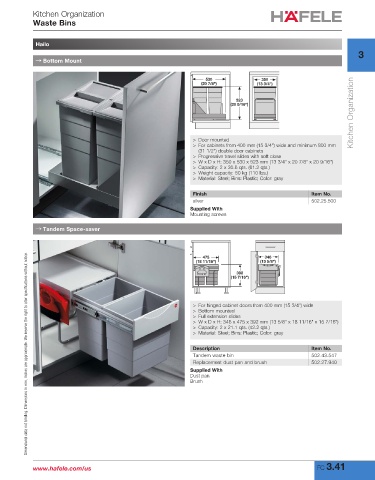

Page 55 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Waste Bins

Hailo
3
→ Bottom Mount

530 350
Kitchen Organization
(20 7/8") (13 3/4")
523
(20 9/16")

> Door mounted
> For cabinets from 400 mm (15 3/4") wide and minimum 800 mm
(31 1/2") double door cabinets
> Progressive travel slides with soft close
> W x D x H: 350 x 530 x 523 mm (13 3/4" x 20 7/8" x 20 9/16")
> Capacity: 2 x 30.6 qts. (61.2 qts.)
> Weight capacity: 50 kg (110 lbs.)
> Material: Steel; Bins: Plastic; Color: gray

Finish Item No.
silver 502.25.500
Supplied With
Mounting screws

→ Tandem Space-saver

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
475 346
(18 11/16") (13 5/8")
392
(15 7/16")

> For hinged cabinet doors from 400 mm (15 3/4") wide
> Bottom mounted
> Full extension slides
> W x D x H: 346 x 475 x 392 mm (13 5/8" x 18 11/16" x 15 7/16")
> Capacity: 2 x 21.1 qts. (42.2 qts.)
> Material: Steel; Bins: Plastic; Color: gray

Description Item No.
Tandem waste bin 502.43.547
Replacement dust pan and brush 502.27.940
Supplied With
Dust pan
Brush

www.hafele.com/us FC 3.41
