Kitchen Organization
Waste Bins

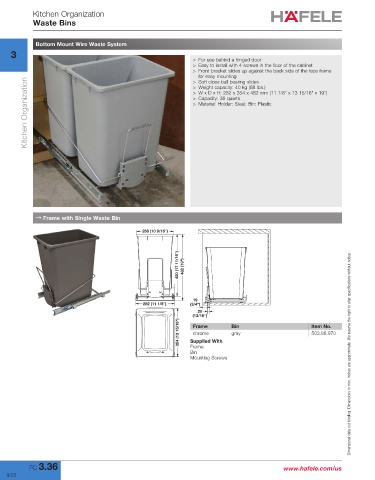

Bottom Mount Wire Waste System
3
> For use behind a hinged door
> Easy to install with 4 screws in the floor of the cabinet
> Front bracket slides up against the back side of the face frame
for easy mounting
Kitchen Organization > Capacity: 36 quarts
> Soft close ball bearing slides
> Weight capacity: 40 kg (88 lbs.)
> W x D x H: 282 x 354 x 482 mm (11 1/8" x 13 15/16" x 19")
> Material: Holder: Steel; Bin: Plastic

→ Frame with Single Waste Bin

268 (10 9/16")

450 (17 11/16") 482 (19")

19
282 (11 1/8") (3/4")
20
(13/16")
354 (13 15/16") Supplied With Bin Item No.
Frame
503.88.970
gray
chrome
Frame
Bin Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Mounting Screws

FC 3.36 www.hafele.com/us
