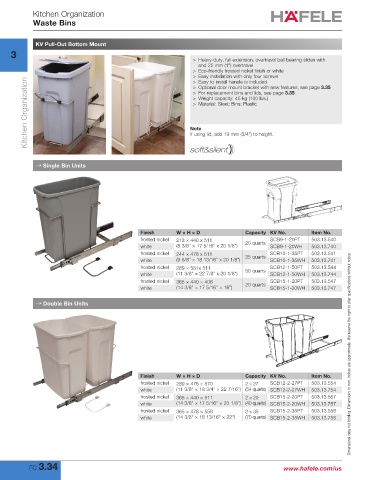

P. 48
Kitchen Organization
Waste Bins
KV Pull-Out Bottom Mount
3
> Heavy-duty, full extension, overtravel ball bearing slides with
and 25 mm (1") overtravel
> Eco-friendly frosted nickel finish or white
> Easy installation with only four screws
Kitchen Organization Note
> Easy to install handle is included
> Optional door mount bracket with new features, see page 3.35
> For replacement bins and lids, see page 3.35
> Weight capacity: 45 kg (100 lbs.)
> Material: Steel; Bins: Plastic
If using lid, add 19 mm (3/4") to height.
→ Single Bin Units
Finish W × H × D Capacity KV No. Item No.
frosted nickel 213 × 440 x 511 20 quarts SCB9-1-20PT 503.13.540
white (8 3/8" × 17 5/16" x 20 1/8") SCB9-1-20WH 503.13.740
frosted nickel 244 × 478 x 511 35 quarts SCB10-1-35PT 503.13.541
white (9 5/8" × 18 13/16" x 20 1/8") SCB10-1-35WH 503.13.741
frosted nickel 289 × 581x 511 SCB12-1-50PT 503.13.544
white (11 3/8" × 22 7/8" x 20 1/8") 50 quarts SCB12-1-50WH 503.13.744
frosted nickel 365 × 440 × 406 20 quarts SCB15-1-20PT 503.13.547
white (14 3/8" × 17 5/16" × 16”) SCB15-1-20WH 503.13.747
→ Double Bin Units
Finish W × H × D Capacity KV No. Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
frosted nickel 289 × 476 × 570 2 × 27 SCB12-2-27PT 503.13.554
white (11 3/8" × 18 3/4" × 22 7/16") (54 quarts) SCB12-2-27WH 503.13.754
frosted nickel 365 × 440 × 511 2 × 20 SCB15-2-20PT 503.13.557
white (14 3/8" × 17 5/16" × 20 1/8") (40 quarts) SCB15-2-20WH 503.13.757
frosted nickel 365 × 478 × 559 2 × 35 SCB15-2-35PT 503.13.558
white (14 3/8" × 18 13/16" × 22") (70 quarts) SCB15-2-35WH 503.13.758
FC 3.34 www.hafele.com/us
