Kitchen Organization
Waste Bins

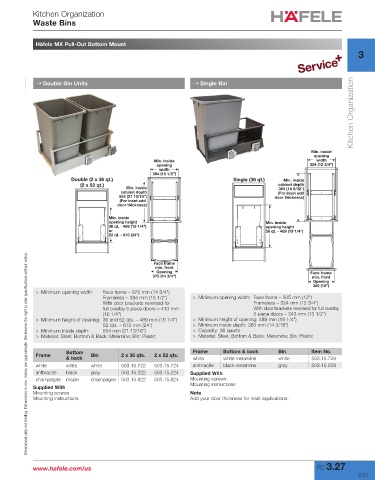

Häfele MX Pull-Out Bottom Mount
3

Kitchen Organization
→ Double Bin Units → Single Bin

Min. inside
opening
Min. inside width
opening 324 (12 3/4")
width
394 (15 1/2")
Double (2 x 36 qt.) Single (36 qt.) Min. inside
(2 x 52 qt.) Min. Inside cabinet depth
360 (14 5/32")
cabinet depth (For inset add
554 (21 13/16") door thickness)
(For inset add
door thickness)
Min. inside
opening height Min. inside
36 qt. - 489 (19 1/4") opening height
or 36 qt. - 489 (19 1/4")
52 qt. - 610 (24")

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Face frame
min. front
Opening Face frame
375 (14 3/4") min. front
Opening
305 (12")
> Minimum opening width: Face frame – 375 mm (14 3/4")
Frameless – 394 mm (15 1/2") > Minimum opening width: Face frame – 305 mm (12")
With door brackets reversed for Frameless – 324 mm (12 3/4")
full overlay 5 piece doors – 413 mm With door brackets reversed for full overlay
(16 1/4") 5 piece doors – 343 mm (13 1/2")
> Minimum height of opening: 36 and 52 qts. – 489 mm (19 1/4") > Minimum height of opening: 489 mm (19 1/4")
52 qts. – 610 mm (24") > Minimum inside depth: 360 mm (14 3/16")
> Minimum inside depth: 554 mm (21 13/16") > Capacity: 36 quarts
> Material: Steel; Bottom & Back: Melamine; Bin: Plastic > Material: Steel; Bottom & Back: Melamine; Bin: Plastic

Frame Bottom Bin 2 x 36 qts. 2 x 52 qts. Frame Bottom & back Bin Item No.
& back white white melamine white 503.15.729
white white white 503.15.722 503.15.724 anthracite black melamine gray 503.15.529
anthracite black gray 503.15.222 503.15.224 Supplied With
champagne maple champagne 503.15.822 503.15.824 Mounting screws
Mounting instructions
Supplied With
Mounting screws Note
Mounting instructions Add your door thickness for inset applications.

www.hafele.com/us FC 3.27
