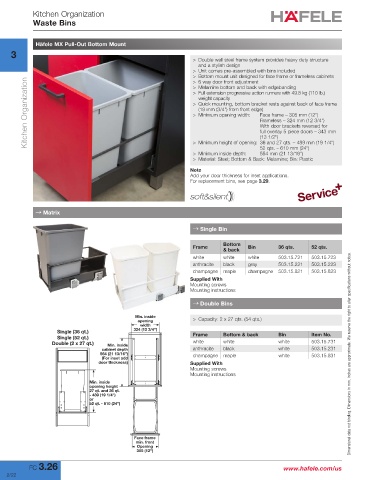

Häfele MX Pull-Out Bottom Mount
3
> Double wall steel frame system provides heavy duty structure
and a stylish design
> Unit comes pre-assembled with bins included
> Bottom mount unit designed for face frame or frameless cabinets
Kitchen Organization weight capacity Face frame – 305 mm (12")
> 6 way door front adjustment
> Melamine bottom and back with edgebanding
> Full extension progressive action runners with 49.8 kg (110 lb.)
> Quick mounting, bottom bracket rests against back of face frame
(19 mm (3/4") from front edge)
> Minimum opening width:
Frameless – 324 mm (12 3/4")

With door brackets reversed for

full overlay 5 piece doors – 343 mm

> Minimum height of opening: 36 and 27 qts. – 489 mm (19 1/4")
52 qts. – 610 mm (24")

554 mm (21 13/16")
> Minimum inside depth: (13 1/2")
> Material: Steel; Bottom & Back: Melamine; Bin: Plastic
Note
Add your door thickness for inset applications.
For replacement bins, see page 3.29.

→ Matrix

→ Single Bin

Bottom
Frame & back Bin 36 qts. 52 qts.
white white white 503.15.721 503.15.723
anthracite black gray 503.15.221 503.15.223
champagne maple champagne 503.15.821 503.15.823
Supplied With
Mounting screws
Mounting instructions

→ Double Bins

Min. inside > Capacity: 2 x 27 qts. (54 qts.)
opening
width
Single (36 qt.) 324 (12 3/4") Frame Bottom & back Bin Item No.
Single (52 qt.)
Double (2 x 27 qt.) Min. inside white white white 503.15.731
cabinet depth anthracite black white 503.15.231
554 (21 13/16") champagne maple white 503.15.831 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(For inset add
door thickness) Supplied With
Mounting screws
Mounting instructions
Min. inside
opening height
27 qt. and 36 qt.
- 489 (19 1/4")
or
52 qt. - 610 (24")

Face frame
min. front
Opening
305 (12")
