Kitchen Organization
Waste Bins

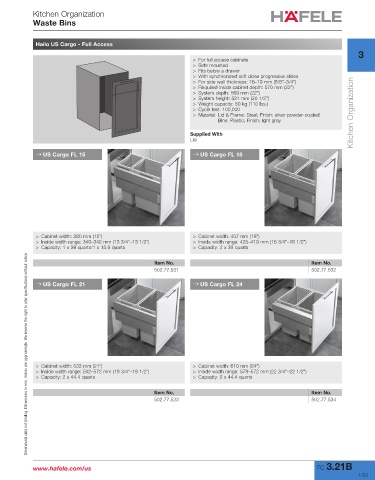

Hailo US Cargo - Full Access
3
> For full access cabinets
> Side mounted
> Fits below a drawer
> With synchronized soft close progressive slides
> For side wall thickness: 16–19 mm (5/8”–3/4”)
> Required inside cabinet depth: 570 mm (22”)
> System depth: 569 mm (22”)
> System height: 521 mm (20 1/2”)
> Weight capacity: 50 kg (110 lbs.)
> Cycle test: 100,000
> Material: Lid & Frame: Steel; Finish: silver powder-coated Kitchen Organization
Bins: Plastic; Finish: light gray

Supplied With
Lid

→ US Cargo FL 15 → US Cargo FL 18

> Cabinet width: 380 mm (15”) > Cabinet width: 457 mm (18”)
> Inside width range: 349–342 mm (13 3/4”–13 1/2”) > Inside width range: 425–419 mm (16 3/4”–16 1/2”)
> Capacity: 1 x 39 quarts/1 x 15.9 quarts > Capacity: 2 x 39 quarts
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Item No. Item No.
502.77.531 502.77.532

→ US Cargo FL 21 → US Cargo FL 24

> Cabinet width: 533 mm (21”) > Cabinet width: 610 mm (24”)
> Inside width range: 502–572 mm (19 3/4”–19 1/2”) > Inside width range: 578–572 mm (22 3/4”–22 1/2”)
> Capacity: 2 x 44.4 quarts > Capacity: 2 x 44.4 quarts

Item No. Item No.
502.77.533 502.77.534
