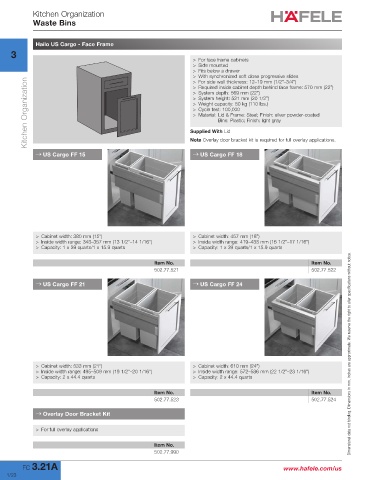

P. 34
Kitchen Organization
Waste Bins
Hailo US Cargo - Face Frame
3
> For face frame cabinets
> Side mounted
> Fits below a drawer
> With synchronized soft close progressive slides
Kitchen Organization Supplied With Lid
> For side wall thickness: 12–19 mm (1/2”–3/4”)
> Required inside cabinet depth behind face frame: 570 mm (22”)
> System depth: 569 mm (22”)
> System height: 521 mm (20 1/2”)
> Weight capacity: 50 kg (110 lbs.)
> Cycle test: 100,000
> Material: Lid & Frame: Steel; Finish: silver powder-coated
Bins: Plastic; Finish: light gray
→ US Cargo FF 15 Note Overlay door bracket kit is required for full overlay applications.
→ US Cargo FF 18
> Cabinet width: 380 mm (15”) > Cabinet width: 457 mm (18”)
> Inside width range: 343–357 mm (13 1/2”–14 1/16”) > Inside width range: 419–433 mm (16 1/2”–17 1/16”)
> Capacity: 1 x 39 quarts/1 x 15.9 quarts > Capacity: 1 x 39 quarts/1 x 15.9 quarts
Item No. Item No.
US Cargo 15 Framed 502.77.521 502.77.522
→ US Cargo FF 21 → US Cargo FF 24
> Cabinet width: 533 mm (21”) > Cabinet width: 610 mm (24”) Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Inside width range: 495–509 mm (19 1/2”–20 1/16”) > Inside width range: 572–586 mm (22 1/2”–23 1/16”)
> Capacity: 2 x 44.4 quarts > Capacity: 2 x 44.4 quarts
Item No. Item No.
502.77.523 502.77.524
→ Overlay Door Bracket Kit
> For full overlay applications
Item No.
502.77.990
FC 3.21A www.hafele.com/us
1/23
