P. 38

Kitchen Organization
            Waste Bins

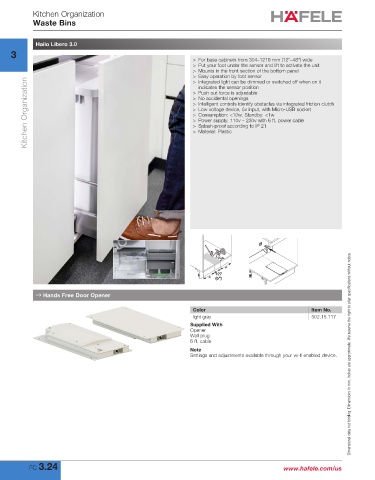

             Hailo Libero 3.0
     3
                                                                >  For base cabinets from 304–1219 mm (12"–48") wide
                                                                >  Put your foot under the sensor and lift to activate the unit
                                                                >  Mounts in the front section of the bottom panel
                                                                >  Easy operation by foot sensor
          Kitchen Organization                                  >  No accidental openings
                                                                >  Integrated light can be dimmed or switched off when on it
                                                                  indicates the sensor position
                                                                >  Push out force is adjustable
                                                                >  Intelligent controls identify obstacles via integrated friction clutch
                                                                >  Low voltage device, 5v input, with Micro-USB socket
                                                                >  Consumption: <10w, Standby: <1w
                                                                >  Power supply: 110v – 230v with 6 ft. power cable
                                                                >  Splash-proof according to IP 21
                                                                >  Material: Plastic
























                                                                       286
                                                                      (11 1/4")
                                                                           =
                                                                       127
                                                                     =  (5")


             → Hands Free Door Opener
                                                                Color                                  Item No.
                                                                light gray                             502.15.117
                                                               Supplied With
                                                               Opener
                                                               Wall plug
                                                               6 ft. cable
                                                               Note
                                                               Settings and adjustments available through your wi-fi enabled device. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.




















           FC 3.24                                                                            www.hafele.com/us
   33   34   35   36   37   38   39   40   41   42   43
