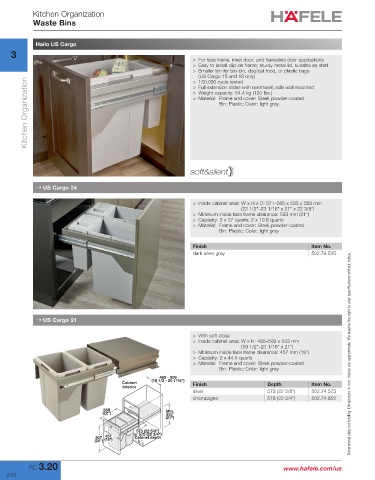

Page 32 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Waste Bins

Hailo US Cargo
3
> For face frame, inset door, and frameless door applications
> Easy to install clip-on frame; sturdy metal lid, suitable as shelf
> Smaller bin for bio-bin, dog/cat food, or plastic bags
(US Cargo 15 and 18 only)
Kitchen Organization > Material: Frame and cover: Steel, powder-coated
> 130,000 cycle tested
> Full extension slides with overtravel; side wall mounted
> Weight capacity: 54.4 kg (120 lbs.)

Bin: Plastic; Color: light gray

→ US Cargo 24

> Inside cabinet area: W x H x D: 571–585 x 533 x 568 mm
(22 1/2"–23 1/16" x 21" x 22 3/8")
> Minimum inside face frame clearance: 533 mm (21")
> Capacity: 2 x 37 quarts; 2 x 10.6 quarts
> Material: Frame and cover: Steel, powder-coated
Bin: Plastic; Color: light gray

Finish Item No.
dark silver gray 502.74.535

→ US Cargo 21

> With soft close
> Inside cabinet area: W x H: 495–509 x 533 mm
(19 1/2"–20 1/16" x 21")
> Minimum inside face frame clearance: 457 mm (18") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Capacity: 2 x 44.4 quarts
> Material: Frame and cover: Steel, powder-coated
Bin: Plastic; Color: light gray
495 - 509
Cabinet (19 1/2 - 20 1/16") Finish Depth Item No.
Interior
silver 573 (22 5/8") 502.74.573
champagne 578 (22 3/4") 502.74.852
559 Min.
(22") 533
(21")
573 (22 5/8")
Cabinet depth
507 457 or 578 (22 3/4")
(20") (18")

FC 3.20 www.hafele.com/us
2/22
