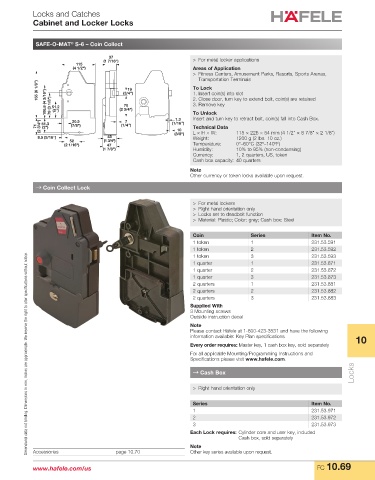

Locks and Catches
Cabinet and Locker Locks

SAFE-O-MAT S-6 – Coin Collect
®
37
(1 7/16") > For metal locker applications
115
(4 1/2") Areas of Application
> Fitness Centers, Amusement Parks, Resorts, Sports Arenas,
Transportation Terminals
155 (6 1/8") (3/4") To Lock
19
106.8 (4 3/16") 79 (3 1/8") 51.2 (2 3/4") 2. Close door, turn key to extend bolt, coin(s) are retained
1. Insert coin(s) into slot
3. Remove key
70
(2")
To Unlock
1.3
7
20.5
(2 3/4") 51.3 (7/8") (1/4") (1/16") Insert and turn key to retract bolt, coin(s) fall into Cash Box.
Technical Data
71 (2") 10 L × H × W: 115 × 226 × 54 mm (4 1/2" × 8 7/8" × 2 1/8")
8.5 (5/16") 45 (3/8") Weight: 1200 g (2 lbs. 10 oz.)
52 (1 3/4")
(2 1/16") 47 Temperature: 0°–60°C (32º–140ºF)
(1 7/8") Humidity: 10% to 95% (non-condensing)
Currency: 1, 2 quarters, US, token
Cash box capacity: 40 quarters
Note
Other currency or token locks available upon request.
→ Coin Collect Lock
> For metal lockers
> Right hand orientation only
> Locks set to deadbolt function
> Material: Plastic; Color: gray; Cash box: Steel

Coin Series Item No.
1 token 1 231.53.591
1 token 2 231.53.592
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
1 token 3 231.53.593
1 quarter 1 231.53.871
1 quarter 2 231.53.872
1 quarter 3 231.53.873
2 quarters 1 231.53.881
2 quarters 2 231.53.882
2 quarters 3 231.53.883
Supplied With
3 Mounting screws
Outside instruction decal
Note
Please contact Häfele at 1-800-423-3531 and have the following
information available: Key Plan specifications 10
Every order requires: Master key, 1 cash box key, sold separately
For all applicable Mounting/Programming Instructions and
Specifications please visit www.hafele.com.
Locks
→ Cash Box

> Right hand orientation only

Series Item No.
1 231.53.971
2 231.53.972
3 231.53.973
Each Lock requires: Cylinder core and user key, included
Cash box, sold separately
Note
Accessories page 10.70 Other key series available upon request.
