Locks and Catches
Cabinet and Locker Locks

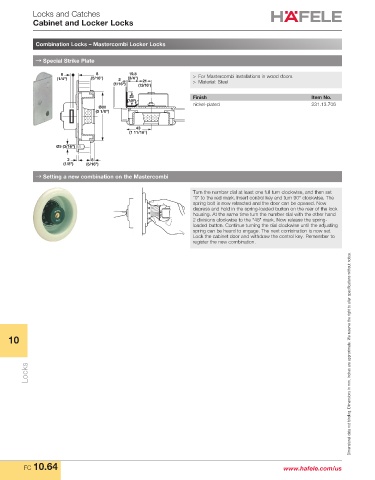

Combination Locks – Mastercombi Locker Locks

→ Special Strike Plate

6 8 19.5 > For Mastercombi installations in wood doors
(1/4") (5/16") 2 (3/4") 21 > Material: Steel
(1/16") (13/16")
23 Finish Item No.
(7/8")
Ø80 nickel-plated 231.13.706
(3 1/8")

43
(1 11/16")
Ø5 (3/16")

3 8
(1/8") (5/16")
→ Setting a new combination on the Mastercombi

Turn the number dial at least one full turn clockwise, and then set
“0" to the red mark. Insert control key and turn 90° clockwise. The
spring bolt is now retracted and the door can be opened. Now
45 depress and hold in the spring-loaded button on the rear of the lock
40 housing. At the same time turn the number dial with the other hand
35 2 divisions clockwise to the “48" mark. Now release the spring-
loaded button. Continue turning the dial clockwise until the adjusting
spring can be heard to engage. The next combination is now set.
Lock the cabinet door and withdraw the control key. Remember to
register the new combination.

10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Locks

FC 10.64 www.hafele.com/us
