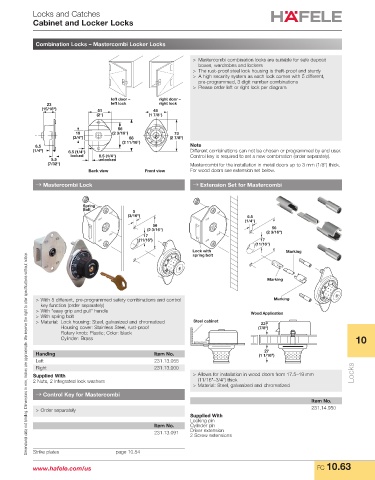

Page 1085 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet and Locker Locks

Combination Locks – Mastercombi Locker Locks

Steel cabinet > Mastercombi combination locks are suitable for safe deposit
boxes, wardrobes and lockers
> The rust-proof steel lock housing is theft-proof and sturdy
> A high security system as each lock comes with 5 different,
pre-programmed, 3 digit number combinations
> Please order left or right lock per diagram

left door – right door –
23 left lock right lock
(15/16") 51 48
(2") (1 7/8")

56 45 5 5
19 (2 3/16") 40 10 73
(3/4") 68 35 15 (2 7/8")
(2 11/16") 30 25 20
6.5 Note
(1/4") 6.5 (1/4") Different combinations can not be chosen or programmed by end user.
locked 6.5 (1/4") Control key is required to set a new combination (order separately).
5.5 unlocked
(7/32") Mastercombi for the installation in metal doors up to 3 mm (1/8") thick.
Back view Front view For wood doors see extension set below.
→ Mastercombi Lock → Extension Set for Mastercombi

Spring
Bolt 5
(3/16") 6.5
(1/4")
56
56
(2 3/16") (2 3/16")
17
(11/16") 17
(11/16")
Lock with Marking
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
spring bolt
Marking

> With 5 different, pre-programmed safety combinations and control Marking
key function (order separately)
> With “easy grip and pull" handle Wood Application
> With spring bolt
> Material: Lock housing: Steel, galvanized and chromatized Steel cabinet 23
Housing cover: Stainless Steel, rust-proof (7/8")
Rotary knob: Plastic; Color: black
Cylinder: Brass 10

27
Handing Item No. (1 1/16")
Left 231.13.055
23
Right (15/16")
231.13.000
51
48
Supplied With > Allows for installation in wood doors from 17.5–19 mm Locks
(1 7/8")
(2")
2 Nuts, 2 Integrated lock washers (11/16"–3/4") thick
> Material: Steel, galvanized and chromatized
56 45 5 5
→ Control Key for Mastercombi 19 (2 3/16") 40 10 73
(3/4") 68 35 15 (2 7/8") Item No.
(2 11/16") 30 25 20
6.5 231.14.950
> Order separately (1/4") 6.5 (1/4")
locked Supplied With
6.5 (1/4")
5.5 Locking pin
unlocked
(7/32")
Item No. Cylinder pin
Back view
231.13.091 Driver extension Front view
2 Screw extensions
Strike plates page 10.54
