Locks and Catches
Cabinet and Locker Locks

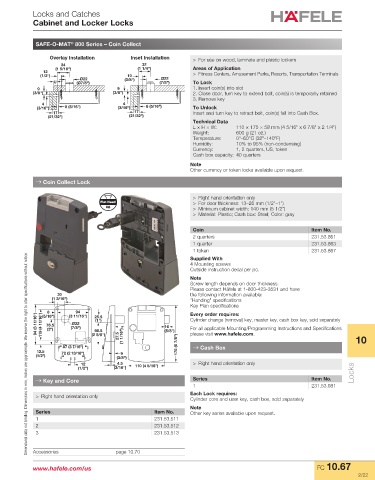

SAFE-O-MAT 800 Series – Coin Collect
®
Overlay Installation Inset Installation > For use on wood, laminate and plastic lockers
34 32
(1 5/16") (1 1/4") Areas of Application
12 > Fitness Centers, Amusement Parks, Resorts, Transportation Terminals
(1/2") Ø22 10 Ø22
U (Ø7/8") (3/8") (7/8") To Lock
9 9 1. Insert coin(s) into slot
(3/8") (3/8") 2. Close door, turn key to extend bolt, coin(s) is temporarily retained
3. Remove key
4 4
(3/16") 8 (5/16") (3/16") 8 (5/16") To Unlock
17 17 Insert and turn key to retract bolt, coin(s) fall into Cash Box.
(21/32") (21/32")
Technical Data
L × H × W: 110 × 175 × 58 mm (4 5/16" x 6 7/8" x 2 1/4")
Weight: 600 g (21 oz.)
Temperature: 0°–60°C (32º–140ºF)
Humidity: 10% to 95% (non-condensing)
Currency: 1, 2 quarters, US, token
Cash box capacity: 40 quarters
Note
Other currency or token locks available upon request.
→ Coin Collect Lock

> Right hand orientation only
Flat Head > For door thickness: 13–26 mm (1/2"–1")
#8 > Minimum cabinet width: 140 mm (5 1/2")
> Material: Plastic; Cash box: Steel; Color: gray

Coin Item No.
2 quarters 231.53.861
1 quarter 231.53.863
1 token 231.53.867
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Supplied With
4 Mounting screws
Outside instruction decal per pc.
Note
Screw length depends on door thickness.
Please contact Häfele at 1-800-423-3531 and have
30 the following information available:
(1 3/16") “Handing" specifications
Key Plan specifications
94
8 (3 11/16") 25.5 Every order requires:
94 (3 11/16") 119 (4 11/16") 76.5 (7/8") (2 5/8") 16 Cylinder change (removal) key, master key, cash box key, sold separately
(5/16")
(1")
Ø22
For all applicable Mounting/Programming Instructions and Specifications
(3")
(5/8")
66.5
please visit www.hafele.com.
87 (3 7/16") 27.5 (1 1/16") 175 (6 7/8") → Cash Box 10
12.5 72 (2 13/16")
(1/2") 9
(3/8")
12 4.5 110 (4 5/16") > Right hand orientation only
(1/2") (3/16") Locks
→ Key and Core Series Item No.
1 231.53.981
> Right hand orientation only Each Lock requires:
Cylinder core and user key, cash box, sold separately
Note
Series Item No. Other key series available upon request.
1 231.53.511
2 231.53.512
3 231.53.513

Accessories page 10.70

www.hafele.com/us FC 10.67
