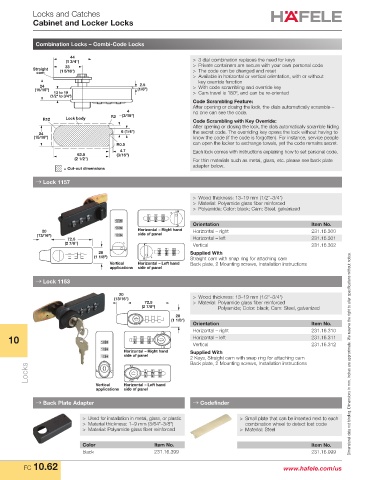

Page 1084 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet and Locker Locks

Combination Locks – Combi-Code Locks

44 > 3 dial combination replaces the need for keys
(1 3/4")
33 > Private containers are secure with your own personal code
Straight (1 5/16") > The code can be changed and reset
cam
> Available in horizontal or vertical orientation, with or without
key override function
24 2.5 > With code scrambling and override key
(15/16") 13 to 19 (1/8") > Cam travel is 180º, and can be re-oriented
(1/2" to 3/4")
Code Scrambling Feature:
After opening or closing the lock, the dials automatically scramble –
4 no one can see the code.
R12 Lock body R2 (3/16") Code Scrambling with Key Override:
After opening or closing the lock, the dials automatically scramble hiding
6 (1/4") the secret code. The overriding key opens the lock without having to
24
(15/16") know the code (if the code is forgotten). For instance, service people
R0.5 can open the locker to exchange towels, yet the code remains secret.
4.7 Each lock comes with instructions explaining how to set personal code.
63.5 (3/16")
(2 1/2") For thin materials such as metal, glass, etc. please see back plate
adapter below.
= Cut-out dimensions
→ Lock 1157

> Wood thickness: 13–19 mm (1/2"–3/4")
> Material: Polyamide glass fiber reinforced
> Polyamide; Color: black; Cam: Steel, galvanized

Orientation Item No.
20 Horizontal – Right hand Horizontal – right 231.16.300
(13/16") side of panel
72.5 Horizontal – left 231.16.301
(2 7/8") Vertical 231.16.302
28 Supplied With
(1 1/8") Straight cam with snap ring for attaching cam
Vertical Horizontal – Left hand Back plate, 2 Mounting screws, Installation instructions
applications side of panel

→ Lock 1153

20 > Wood thickness: 13–19 mm (1/2"–3/4")
(13/16")
72.5 > Material: Polyamide glass fiber reinforced
(2 7/8") Polyamide; Color: black; Cam: Steel, galvanized
28
(1 1/8")
Orientation Item No.
Horizontal – right 231.16.310
10 Horizontal – left 231.16.311
Vertical 231.16.312
Horizontal – Right hand Supplied With
side of panel Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2 Keys, Straight cam with snap ring for attaching cam
Back plate, 2 Mounting screws, Installation instructions
Locks

Vertical Horizontal – Left hand
applications side of panel
→ Back Plate Adapter → Codefinder

> Used for installation in metal, glass, or plastic > Small plate that can be inserted next to each
> Material thickness: 1–9 mm (3/64"–3/8") combination wheel to detect lost code
> Material: Polyamide glass fiber reinforced > Material: Steel

Color Item No. Item No.
black 231.16.399 231.16.999
FC 10.62 www.hafele.com/us
