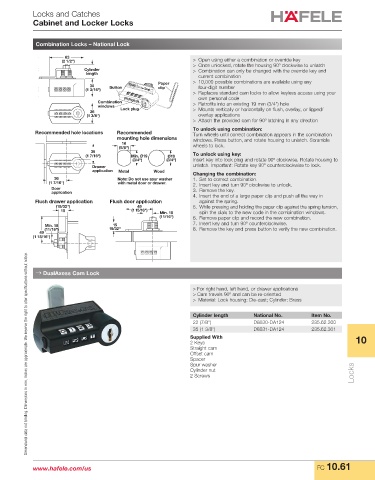

Locks and Catches
Cabinet and Locker Locks

Combination Locks – National Lock

63
(2 1/2") > Open using either a combination or override key
> Once unlocked, rotate the housing 90º clockwise to unlatch
Cylinder > Combination can only be changed with the override key and
length
current combination
Paper > 10,000 possible combinations are available using any
30 Button clip four-digit number
(1 3/16")
> Replaces standard cam locks to allow keyless access using your
own personal code
Combination > Retrofits into an existing 19 mm (3/4") hole
windows
36 Lock plug > Mounts vertically or horizontally on flush, overlay, or lipped/
(1 3/8") overlay applications
> Attach the provided cam for 90º latching in any direction
To unlock using combination:
Recommended hole locations Recommended Turn wheels until correct combination appears in the combination
mounting hole dimensions windows. Press button, and rotate housing to unlatch. Scramble
16 wheels to lock.
(5/8")
36
(1 7/16") Min. Ø19 Ø19 To unlock using key:
(3/4") (3/4") Insert key into lock plug and rotate 90º clockwise. Rotate housing to
Drawer unlatch. Important: Rotate key 90º counterclockwise to lock.
application Metal Wood Changing the combination:
36 Note: Do not use spur washer 1. Set to correct combination.
(1 7/16") with metal door or drawer. 2. Insert key and turn 90º clockwise to unlock.
Door 3. Remove the key.
application
4. Insert the end of a large paper clip and push all the way in
Flush drawer application Flush door application against the spring.
(19/32") 49 5. While pressing and holding the paper clip against the spring tension,
15 (1 15/16") Min. 18 spin the dials to the new code in the combination windows.
(11/16") 6. Remove paper clip and record the new combination.
Min. 18 15 7. Insert key and turn 90º counterclockwise.
(11/16") 19/32" 8. Remove the key and press button to verify the new combination.
49
(1 15/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ DualAxess Cam Lock

> For right hand, left hand, or drawer applications
> Cam travels 90º and can be re-oriented
> Material: Lock housing: Die-cast; Cylinder: Brass

Cylinder length National No. Item No.
22 (7/8") D8030-DA124 235.62.300
35 (1 3/8") D8031-DA124 235.62.301
Supplied With 10
2 Keys
Straight cam
Offset cam
Spacer
Spur washer
Cylinder nut
2 Screws Locks

www.hafele.com/us FC 10.61
