Locks and Catches
Cabinet and Locker Locks

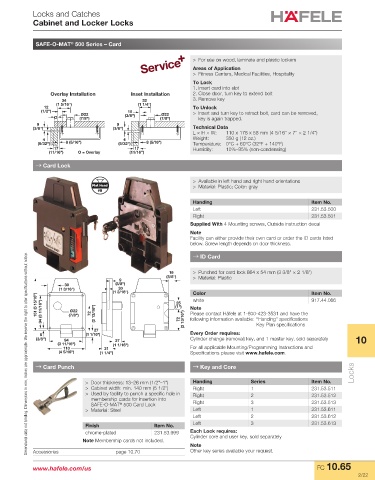

SAFE-O-MAT 500 Series – Card
®

> For use on wood, laminate and plastic lockers
Areas of Application
> Fitness Centers, Medical Facilities, Hospitality
To Lock
1. Insert card into slot
Overlay Installation Inset Installation 2. Close door, turn key to extend bolt
34 32 3. Remove key
(1 5/16") (1 1/4")
12 To Unlock
(1/2") Ø22 10 Ø22 > Insert and turn key to retract bolt, card can be removed,
O (7/8") (3/8") (7/8") key is again trapped.
9 9
(3/8") (3/8") Technical Data
L × H × W: 110 x 178 x 58 mm (4 5/16" × 7" × 2 1/4")
4 4 Weight: 350 g (12 oz.)
(5/32") 8 (5/16") (5/32") 8 (5/16") Temperature: 0°C + 60°C (32ºF + 140ºF)
17 17 Humidity: 10%–95% (non-condensing)
(11/16") O = Overlay (11/16")
→ Card Lock

> Available in left hand and right hand orientations
Flat Head > Material: Plastic; Color: gray
#8

Handing Item No.
Left 231.53.500
Right 231.53.501
Supplied With 4 Mounting screws, Outside instruction decal
Note
Facility can either provide their own card or order the ID cards listed
below. Screw length depends on door thickness.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ ID Card

16 > Punched for card lock 864 x 54 mm (3 3/8" × 2 1/8")
(5/8") > Material: Plastic
9
30 (3/8")
30
(1 3/16") (1 3/16") Color Item No.
151 (5 15/16") 94 (3 11/16") (7/8") 72 (2 13/16") (1") Note 917.44.066
white
25
Ø22
Please contact Häfele at 1-800-423-3531 and have the

Key Plan specifications
27 72 (2 13/16") following information available: “Handing" specifications
8 (1 1/16") Every Order requires:
(3/8") 94 27 Cylinder change (removal) key, and 1 master key, sold separately 10
(3 11/16") (1 1/16")
110 31 For all applicable Mounting/Programming Instructions and
(4 5/16") (1 1/4") Specifications please visit www.hafele.com.
→ Card Punch → Key and Core Locks

> Door thickness: 13–26 mm (1/2"–1") Handing Series Item No.
> Cabinet width: min. 140 mm (5 1/2") Right 1 231.53.511
> Used by facility to punch a specific hole in Right 2 231.53.512
membership cards for insertion into
SAFE-O-MAT 500 Card Lock Right 3 231.53.513
®
> Material: Steel Left 1 231.53.611
Left 2 231.53.612
Finish Item No. Left 3 231.53.613
chrome-plated 231.53.999 Each Lock requires:
Note Membership cards not included. Cylinder core and user key, sold separately
Note
Accessories page 10.70 Other key series available your request.

www.hafele.com/us FC 10.65
