Locks and Catches
Cabinet and Locker Locks

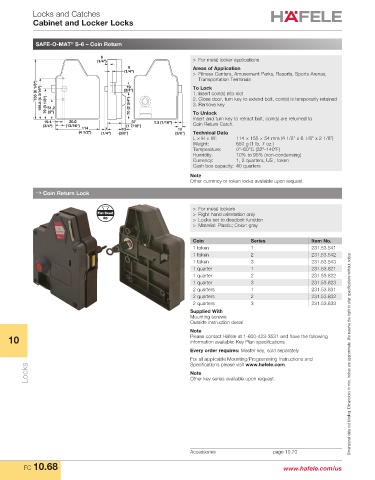

SAFE-O-MAT S-6 – Coin Return
®
6
(1/4") > For metal locker applications
6 Areas of Application
(1/4")
> Fitness Centers, Amusement Parks, Resorts, Sports Arenas,
Transportation Terminals
155 (6 1/8") 106.8 (4 3/16") (3/4") To Lock
19
1. Insert coin(s) into slot
2. Close door, turn key to extend bolt, coin(s) is temporarily retained
79 (3 1/8")
70 (2 3/4")
3. Remove key
51.2
(2")
To Unlock
Insert and turn key to retract bolt, coin(s) are returned to
19.4 20.6 37 1.3 (1/16")
(3/4") (13/16") (1 7/16") Coin Return Catch.
114 7 10 10
(4 1/2") (1/4") (3/8") (3/8") Technical Data
L × H × W: 114 × 155 × 54 mm (4 1/2" x 6 1/8" x 2 1/8")
Weight: 650 g (1 lb. 7 oz.)
Temperature: 0°–60°C (32º–140ºF)
Humidity: 10% to 95% (non-condensing)
Currency: 1, 2 quarters, US , token
Cash box capacity: 40 quarters
Note
Other currency or token locks available upon request.
→ Coin Return Lock
> For metal lockers
Flat Head > Right hand orientation only
#8 > Locks set to deadbolt function
> Material: Plastic; Color: gray

Coin Series Item No.
1 token 1 231.53.541
1 token 2 231.53.542
1 token 3 231.53.543
1 quarter 1 231.53.821
1 quarter 2 231.53.822
1 quarter 3 231.53.823
2 quarters 1 231.53.831
2 quarters 2 231.53.832
2 quarters 3 231.53.833
Supplied With
Mounting screws
Outside instruction decal
Note
10 Please contact Häfele at 1-800-423-3531 and have the following
information available: Key Plan specifications
Every order requires: Master key, sold separately Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
For all applicable Mounting/Programming Instructions and
Specifications please visit www.hafele.com.
Locks Note
Other key series available upon request.

Accessories page 10.70
