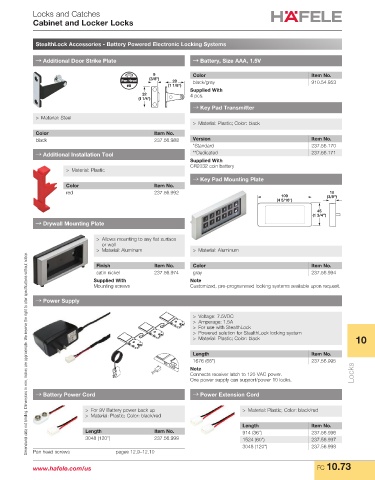

Locks and Catches
Cabinet and Locker Locks

StealthLock Accessories - Battery Powered Electronic Locking Systems

→ Additional Door Strike Plate → Battery, Size AAA, 1.5V
11
172 (7/16")
9 Color (6 3/4") Item No.
(3/8")
Pan Head 28 black/gray 910.54.953
#8 (1 1/8")
Supplied With
32 4 pcs. 64
(1 1/4") (2 1/2")
→ Key Pad Transmitter
Door Strike Plate
> Material: Steel
> Material: Plastic; Color: black
Receiver Latch
8
86
Color Item No. (3 3/8") (5/16")
black 237.56.988 Version Item No.
*Standard 38 237.56.170
237.56.171
→ Additional Installation Tool **Dedicated (1 1/2")
Supplied With
CR2032 coin battery Key Pad Transmitter
> Material: Plastic
→ Key Pad Mounting Plate
Color Item No.
red 237.56.992 10
109 (3/8")
(4 5/16")
45
(1 3/4")
→ Drywall Mounting Plate

> Allows mounting to any flat surface
or wall
> Material: Aluminum > Material: Aluminum
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Finish Item No. Color Item No.
satin nickel 237.56.974 gray 237.56.994
Supplied With Note
Mounting screws Customized, pre-programmed locking systems available upon request.

→ Power Supply

> Voltage: 7.5VDC
> Amperage: 1.5A
> For use with StealthLock
> Powered solution for StealthLock locking system
> Material: Plastic; Color: black 10

Length Item No.
1676 (66") 237.56.995
Note
Connects receiver latch to 120 VAC power. Locks
One power supply can support/power 10 locks.

→ Battery Power Cord → Power Extension Cord

> For 9V Battery power back up > Material: Plastic; Color: black/red
> Material: Plastic; Color: black/red
Length Item No.
Length Item No. 914 (36") 237.56.996
3048 (120") 237.56.999 1524 (60") 237.56.997
3048 (120") 237.56.998
Pan head screws pages 12.9–12.10

www.hafele.com/us FC 10.73
