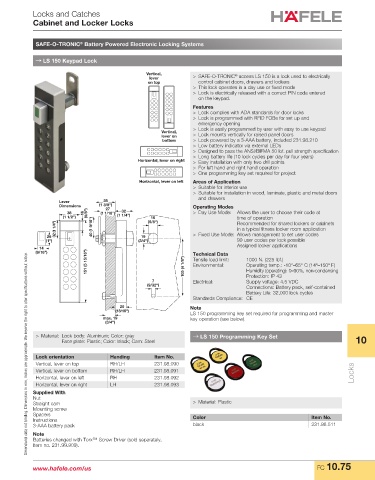

Page 1097 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet and Locker Locks

SAFE-O-TRONIC Battery Powered Electronic Locking Systems
®

→ LS 150 Keypad Lock
Vertical, > SAFE-O-TRONIC access LS 150 is a lock used to electrically
®
lever
on top control cabinet doors, drawers and lockers
> This lock operates in a day use or fixed mode
> Lock is electrically released with a correct PIN code entered
on the keypad.
Features
> Lock complies with ADA standards for door locks
> Lock is programmed with RFID FOBs for set up and
emergency opening
> Lock is easily programmed by user with easy to use keypad
Vertical,
lever on > Lock mounts vertically for raised panel doors
bottom > Lock powered by a 3-AAA battery, included 231.98.210
> Low battery indicator via external LEDs
> Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification
> Long battery life (10 lock cycles per day for four years)
Horizontal, lever on right > Easy installation with only two drill points
> For left hand and right hand operation
> One programming key set required for project
Horizontal, lever on left Areas of Application
> Suitable for interior use
> Suitable for installation in wood, laminate, plastic and metal doors
and drawers
Lever 35
Dimensions (1 3/8") Operating Modes
27
38 16 (5/8") (1 1/16") 32 > Day Use Mode: Allows the user to choose their code at
(1 1/2") (1 1/4") (5/8") time of operation
16
Recommended for shared lockers or cabinets

32 (1 1/4") 40 (1 9/16") in a typical fitness locker room application
26 19 > Fixed Use Mode: Allows management to set user codes
(1") (3/4") 99 user codes per lock possible
Assigned locker applications
14
151 (5 15/16") 105 (4 1/8") Tensile load limit: 1000 N. (225 lbf.)
(9/16") Technical Data
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Operating temp.: -10°–65° C (14º–150º F)
Environmental:
Humidity (operating): 0–90%, non-condensing

Supply voltage: 4.5 VDC
7 Electrical: Protection: IP 43
(9/32") Connections: Battery pack, self-contained
Battery Life: 32,000 lock cycles
Standards Compliance: CE
20 Note
(13/16")
LS 150 programming key set required for programming and master
max. 19 key operation (see below).
(3/4")
> Material: Lock body: Aluminum; Color: gray → LS 150 Programming Key Set
Face plate: Plastic; Color: black; Cam: Steel 10
Lock orientation Handing Item No.
Vertical, lever on top RH/LH 231.98.090
Vertical, lever on bottom RH/LH 231.98.091 Locks
Horizontal, lever on left RH 231.98.092
Horizontal, lever on right LH 231.98.093
Supplied With
Nut
Straight cam > Material: Plastic
Mounting screw
Spacers
Instructions Color Item No.
3-AAA battery pack black 231.98.511
Note
Batteries changed with Torx™ Screw Driver (sold separately,
Item no. 231.99.909).

www.hafele.com/us FC 10.75
