Locks and Catches
Cabinet and Locker Locks

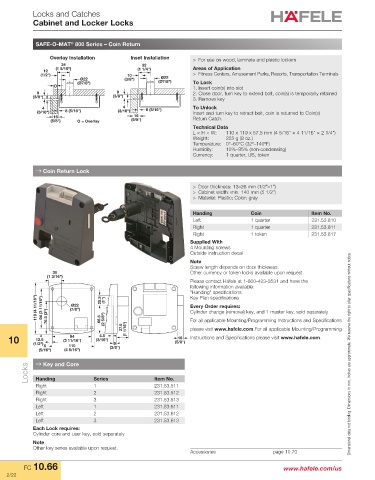

SAFE-O-MAT 800 Series – Coin Return
®
Overlay Installation Inset Installation > For use on wood, laminate and plastic lockers
34 32
(1 5/16") (1 1/4") Areas of Application
12
(1/2") 10 > Fitness Centers, Amusement Parks, Resorts, Transportation Terminals
Ø22 (3/8") Ø22
(Ø7/8") (Ø7/8") To Lock
O 1. Insert coin(s) into slot
9 9 2. Close door, turn key to extend bolt, coin(s) is temporarily retained
(3/8") (3/8") 3. Remove key
4 4 8 (5/16") To Unlock
(3/16") 8 (5/16") (3/16") Insert and turn key to retract bolt, coin is returned to Coin(s)
16 16 Return Catch.
(5/8") O = Overlay (5/8")
Technical Data
L × H × W: 110 x 119 x 57.5 mm (4 5/16" × 4 11/16" × 2 1/4")
Weight: 225 g (8 oz.)
Temperature: 0°–60°C (32º–140ºF)
Humidity: 10%–95% (non-condensing)
Currency: 1 quarter, US, token

→ Coin Return Lock

> Door thickness: 13–26 mm (1/2"–1")
> Cabinet width: min. 140 mm (5 1/2")
> Material: Plastic; Color: gray

Handing Coin Item No.
Left 1 quarter 231.53.810
Right 1 quarter 231.53.811
Right 1 token 231.53.817
Supplied With
4 Mounting screws
Outside instruction decal
Note
Screw length depends on door thickness.
30 Other currency or token locks available upon request.
(1 3/16")
Please contact Häfele at 1-800-423-3531 and have the
following information available:
“Handing" specifications
Key Plan specifications
119 (4 11/16") 94 (3 11/16") 76.5 (3") (7/8") 25.5 (1") Every Order requires:
Ø22
Cylinder change (removal) key, and 1 master key, sold separately
(2 5/8")
66.5
27.5 (1 1/16") For all applicable Mounting/Programming Instructions and Specifications
please visit www.hafele.com.For all applicable Mounting/Programming
4.5
94
10 (1/2") (3 11/16") (3/16") 9 (5/8") Instructions and Specifications please visit www.hafele.com.
16
12.5
8
110
(5/16") (4 5/16") (3/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks → Key and Core Series Item No.
Handing
Right 1 231.53.511
Right 2 231.53.512
Right 3 231.53.513
Left 1 231.53.611
Left 2 231.53.612
Left 3 231.53.613
Each Lock requires:
Cylinder core and user key, sold separately
Note
Other key series available upon request.
Accessories page 10.70
FC 10.66 www.hafele.com/us
2/22
