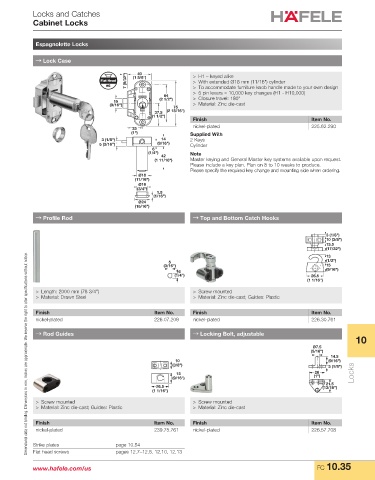

Locks and Catches
Cabinet Locks

Espagnolette Locks

→ Lock Case
40
7 (9/32") > With extended Ø18 mm (11/16") cylinder
Flat Head (1 5/8") > H1 – keyed alike
#6 > To accommodate furniture knob handle made to your own design
> 5 pin levers = 10,000 key changes (H1 - H10,000)
64 > Closure travel: 180°
15 (2 1/2")
(9/16") 75 > Material: Zinc die-cast
37.5 (2 15/16")
(1 1/2")
Finish Item No.
25 nickel-plated 225.62.290
(1") Supplied With
3 (1/8") 14 2 Keys
5 (3/16") (9/16") Cylinder
6
(1/4") Note
42
(1 11/16") Master keying and General Master key systems available upon request.
Please include a key plan. Plan on 8 to 10 weeks to produce.
Please specify the required key change and mounting side when ordering.
Ø18
(11/16")
Ø19
(3/4")
1.5
(1/16")
Ø24
(15/16")
→ Profile Rod → Top and Bottom Catch Hooks

3 (1/8")
10 (3/8")
13.5
(17/32")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
13
5 (1/2")
(3/16") 15
6 (9/16")
(1/4") 26.5
(1 1/16")
> Length: 2000 mm (78 3/4”) > Screw mounted
> Material: Drawn Steel > Material: Zinc die-cast; Guides: Plastic

Finish Item No. Finish Item No.
nickel-plated 226.07.209 nickel-plated 226.30.761

→ Rod Guides → Locking Bolt, adjustable
10
Ø7.5
(5/16")
14.5
10 (9/16")
(3/8") 3 (1/8")
15 26 Locks
(9/16") (1")
21.5
26.5 (13/16")
(1 1/16")
> Screw mounted > Screw mounted
> Material: Zinc die-cast; Guides: Plastic > Material: Zinc die-cast

Finish Item No. Finish Item No.
nickel-plated 239.75.761 nickel-plated 226.57.708

Strike plates page 10.54
Flat head screws pages 12.7–12.8, 12.10, 12.13
