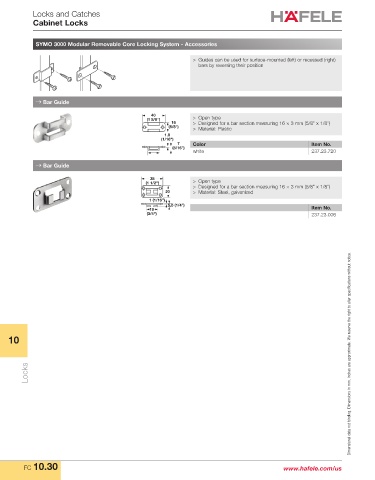

P. 1052
Locks and Catches
Cabinet Locks
SYMO 3000 Modular Removable Core Locking System - Accessories
> Guides can be used for surface-mounted (left) or recessed (right)
bars by reversing their position
→ Bar Guide
40
(1 5/8") > Open type
16 > Designed for a bar section measuring 16 × 3 mm (5/8" x 1/8")
(5/8") > Material: Plastic
1.8
(1/16")
7 Color Item No.
(5/16")
white 237.23.720
→ Bar Guide
38 > Open type
(1 1/2")
> Designed for a bar section measuring 16 × 3 mm (5/8" x 1/8")
20 > Material: Steel, galvanized
1 (1/16")
5.5 (1/4")
19 Item No.
(3/4") 237.23.006
10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks
FC 10.30 www.hafele.com/us
