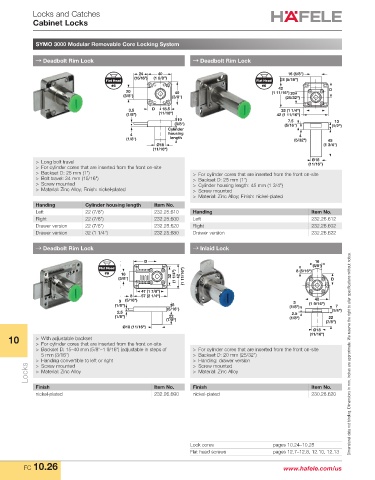

Locks and Catches
Cabinet Locks

SYMO 3000 Modular Removable Core Locking System

→ Deadbolt Rim Lock → Deadbolt Rim Lock
24 40 16 (5/8")
(15/16") (1 5/8")
Flat Head Flat Head 8 (5/16")
#6 #6 42
20 40 (1 11/16") 20 D
(3/8") (3/8") (25/32")

3.5 D 18.5 32 (1 1/4")
(1/8") (11/16") 42 (1 11/16")
10 7.5 13
(3/8") (5/16") (1/2")
Cylinder
4 housing 4
(1/8") length (5/32") 45
Ø18 (1 3/4")
(11/16")
Ø18
> Long bolt travel (11/16")
> For cylinder cores that are inserted from the front on-site
> Backset D: 25 mm (1") > For cylinder cores that are inserted from the front on-site
> Bolt travel: 24 mm (15/16") > Backset D: 25 mm (1")
> Screw mounted > Cylinder housing length: 45 mm (1 3/4")
> Material: Zinc Alloy; Finish: nickel-plated > Screw mounted
> Material: Zinc Alloy; Finish: nickel-plated
Handing Cylinder housing length Item No.
Left 22 (7/8") 232.25.610 Handing Item No.
Right 22 (7/8") 232.25.600 Left 232.26.612
Drawer version 22 (7/8") 232.25.620 Right 232.26.602
Drawer version 32 (1 1/4") 232.25.680 Drawer version 232.26.622

→ Deadbolt Rim Lock → Inlaid Lock

D 16
(5/8")
Flat Head
#6 16 8 (5/16")
(5/8") 32 (1 1/4") 42 (1 11/16") D
47 (1 7/8")
8 57 (2 1/4")
3 (5/16") 3 40
(1/8") 8 (1/8") (1 9/16") 7
(5/16")
2.5 2.5 (1/4")
(1/8") 22 (1/8") 22
(7/8") (7/8")
Ø18 (11/16")
Ø18
(11/16")
10 > With adjustable backset
> For cylinder cores that are inserted from the front on-site
> Backset D: 15–40 mm (5/8"–1 9/16") (adjustable in steps of > For cylinder cores that are inserted from the front on-site
5 mm (3/16") > Backset D: 20 mm (25/32") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Handing convertible to left or right > Handing: drawer version
Locks > Material: Zinc Alloy > Material: Zinc Alloy
> Screw mounted
> Screw mounted
Finish Item No. Finish Item No.
nickel-plated 232.26.690 nickel-plated 230.28.620

Lock cores pages 10.24–10.25
Flat head screws pages 12.7–12.8, 12.10, 12.13
FC 10.26 www.hafele.com/us
