Locks and Catches
Cabinet Locks

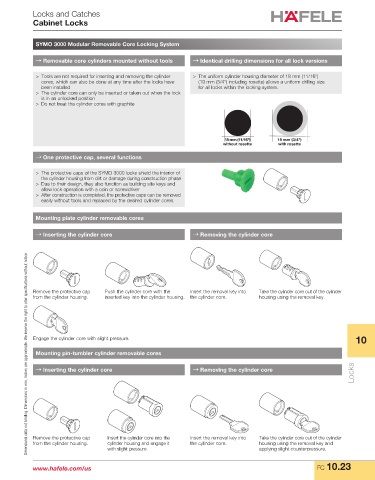

SYMO 3000 Modular Removable Core Locking System

→ Removable core cylinders mounted without tools → Identical drilling dimensions for all lock versions

> Tools are not required for inserting and removing the cylinder > The uniform cylinder housing diameter of 18 mm (11/16")
cores, which can also be done at any time after the locks have (19 mm (3/4") including rosette) allows a uniform drilling size
been installed for all locks within the locking system.
> The cylinder core can only be inserted or taken out when the lock
is in an unlocked position
> Do not treat the cylinder cores with graphite

18 mm (11/16") 19 mm (3/4")
without rosette with rosette
→ One protective cap, several functions

> The protective caps of the SYMO 3000 locks shield the interior of
the cylinder housing from dirt or damage during construction phase
> Due to their design, they also function as building site keys and
allow lock operation with a coin or screwdriver
> After construction is completed, the protective caps can be removed
easily without tools and replaced by the desired cylinder cores.

Mounting plate cylinder removable cores

→ Inserting the cylinder core → Removing the cylinder core

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Remove the protective cap Push the cylinder core with the Insert the removal key into Take the cylinder core out of the cylinder
from the cylinder housing. inserted key into the cylinder housing. the cylinder core. housing using the removal key.

Engage the cylinder core with slight pressure. 10

Mounting pin-tumbler cylinder removable cores

Locks
→ Inserting the cylinder core → Removing the cylinder core

Remove the protective cap Insert the cylinder core into the Insert the removal key into Take the cylinder core out of the cylinder
from the cylinder housing. cylinder housing and engage it the cylinder core. housing using the removal key and
with slight pressure. applying slight counterpressure.

www.hafele.com/us FC 10.23
