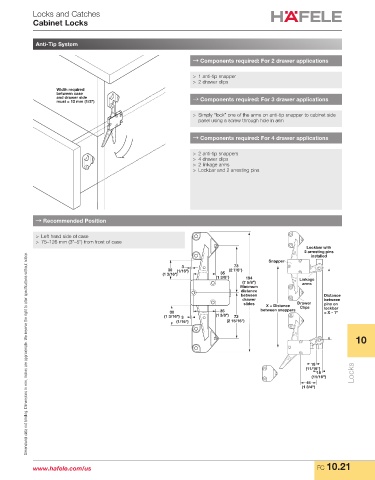

Locks and Catches
Cabinet Locks
Anti-Tip System
→ Components required: For 2 drawer applications
> 1 anti-tip snapper
> 2 drawer clips
Width required
between case
and drawer side → Components required: For 3 drawer applications
must = 12 mm (1/2")
> Simply “lock” one of the arms on anti-tip snapper to cabinet side
panel using a screw through hole in arm
→ Components required: For 4 drawer applications
> 2 anti-tip snappers
> 4 drawer clips
> 2 linkage arms
> Lockbar and 2 arresting pins
→ Recommended Position
> Left hand side of case
> 75–126 mm (3"–5") from front of case
Lockbar with
2 arresting pins
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
installed
Snapper
3 73
30 (1/16") (2 7/8")
(1 3/16") 35
(1 3/8") 194 Linkage
(7 5/8") arms
Minimum
distance
between Distance
drawer between
slides X = Distance Drawer pins on
Clips
30 35 between snappers lockbar
= X - 1"
(1 3/16") 3 (1 3/8") 73
(1/16") (2 15/16")
10
18
(11/16")
18 Locks
(11/16")
44
(1 3/4")
