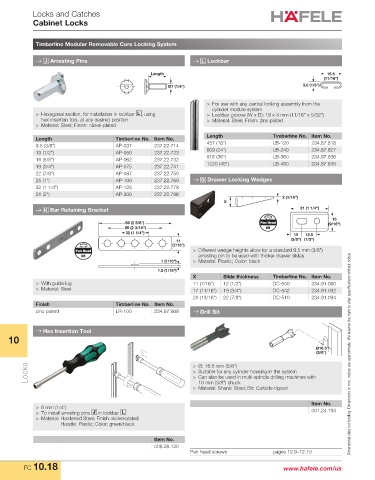

Page 1040 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet Locks

Timberline Modular Removable Core Locking System

→ J Arresting Pins → L Lockbar
Length 16.5
(11/16")
Ø7 (1/4") 3.5 (1/8")

> For use with any central locking assembly from the
cylinder module system
> Hexagonal section, for installation in lockbar L , using > Lockbar groove (W x D): 18 x 4 mm (11/16" x 5/32")
hex insertion tool, at any desired position > Material: Steel; Finish: zinc-plated
> Material: Steel; Finish: nickel-plated

Length Timberline No. Item No. Length Timberline No. Item No.
9.5 (3/8") AP-037 237.22.714 457 (18") LB-120 234.87.818
13 (1/2") AP-050 237.22.723 609 (24") LB-240 234.87.827
16 (5/8") AP-062 237.22.732 915 (36") 31 (1 1/4") LB-360 234.87.836
19 (3/4") AP-075 237.22.741 1220 (48") LB-480 234.87.845
15
22 (7/8") AP-087 237.22.750 (9/16")
25 (1") AP-100 237.22.769 → Q Drawer Locking Wedges
12.5
10
32 (1 1/4") AP-125 237.22.778 (3/8") (1/2")
51 (2") AP-300 237.22.796
2 (1/16")
X
→ K Bar Retaining Bracket 31 (1 1/4")
15
66 (2 5/8") Pan Head (9/16")
55 (2 3/16") #8
32 (1 1/4") 10 12.5
11 (3/8") (1/2")
(7/16")
Pan Head > Different wedge heights allow for a standard 9.5 mm (3/8") 2 (1/16")
X
#6 arresting pin to be used with thicker drawer slides
1 (1/16") > Material: Plastic; Color: black
1.5 (1/16")
X Slide thickness Timberline No. Item No.
> With guide lug 11 (7/16") 12 (1/2") DC-500 234.91.090
> Material: Steel 17 (11/16") 19 (3/4") DC-502 234.91.092
20 (13/16") 22 (7/8") DC-510 234.91.094
Finish Timberline No. Item No.
zinc-plated LR-100 234.87.989 → Drill Bit

→ Hex Insertion Tool
10
Ø16.5
(5/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Locks > Ø: 16.5 mm (5/8")
> Suitable for any cylinder housing in the system
> Can also be used in multi-spindle drilling machines with
10 mm (3/8") chuck
> Material: Shank: Steel; Bit: Carbide-tipped

Item No.
> 6 mm (1/4")
> To install arresting pins J in lockbar L 001.24.194
> Material: Hardened Steel; Finish: nickel-plated
Handle: Plastic; Color: green/black

Item No.
008.26.120
Pan head screws pages 12.9–12.10
FC 10.18 www.hafele.com/us
