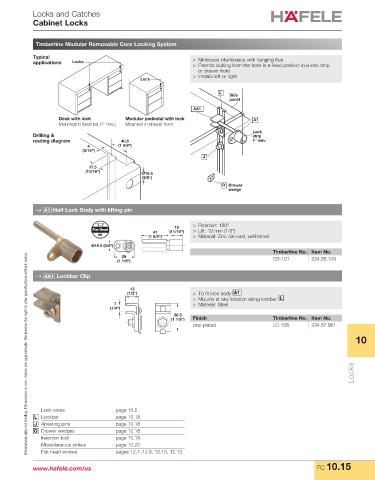

Locks and Catches
Cabinet Locks

Timberline Modular Removable Core Locking System

Typical > Minimizes interference with hanging files
applications Locks > Permits locking from the front in a fixed position in a lock strip
or drawer front
> Installs left or right
Lock
L Side 40.5
panel 4 (1 5/8")
(3/16")
AA1
Desk with lock Modular pedestal with lock A1 17.5
Mounted in fixed rail (1" min.) Mounted in drawer front (11/16") Ø16.5
Lock (5/8")
Drilling & strip
L routing diagram 40.5 1" min.
Side
panel 4 (1 5/8")
(3/16")
AA1 J
A1 17.5
(11/16") Ø16.5
Lock (5/8")
strip
1" min. Q Drawer
wedge
J
→ A1 Half Lock Body with lifting pin

> Rotation: 180º
18
Flat Head
Q Drawer 41 (11/16") > Lift: 12 mm (1/2")
wedge #6 (1 5/8") > Material: Zinc die-cast, unfinished
Ø16.5 (5/8")
Timberline No. Item No.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
29 CB-101 234.85.109
(1 1/8")
→ AA1 Lockbar Clip
13
(1/2") > To fit lock body A1
> Mounts at any location along lockbar L
7 > Material: Steel
(1/4")
28.5
(1 1/8") Finish Timberline No. Item No.
zinc-plated LC-106 234.87.961
10

Locks

Lock cores page 10.5
L Lockbar page 10.18
J Arresting pins page 10.18
Q Drawer wedges page 10.18
Insertion tool page 10.18
Miscellaneous strikes page 10.20
Flat head screws pages 12.7–12.8, 12.10, 12.13

www.hafele.com/us FC 10.15
