Locks and Catches
Cabinet Locks

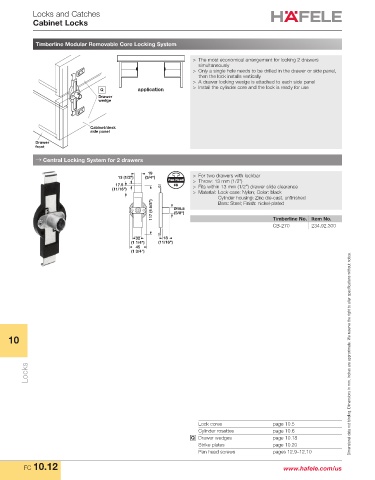

Timberline Modular Removable Core Locking System

> The most economical arrangement for locking 2 drawers
simultaneously
> Only a single hole needs to be drilled in the drawer or side panel,
then the lock installs vertically
> A drawer locking wedge is attached to each side panel
Q application > Install the cylinder core and the lock is ready for use
Drawer
wedge

Cabinet/desk
side panel
Drawer
front

→ Central Locking System for 2 drawers

19
13 (1/2") (3/4") > For two drawers with lockbar
Pan Head > Throw: 13 mm (1/2")
17.5 #8 > Fits within 13 mm (1/2") drawer slide clearance
(11/16")
> Material: Lock case: Nylon; Color: black
Cylinder housing: Zinc die-cast, unfinished
117 (4 5/8") Ø16.5
Bars: Steel; Finish: nickel-plated

(5/8")
Timberline No. Item No.
CB-270 234.92.300
32 18
(1 1/4") (11/16")
45
(1 3/4")

10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Locks

Lock cores page 10.5
Cylinder rosettes page 10.6
Q Drawer wedges page 10.18
Strike plates page 10.20
Pan head screws pages 12.9–12.10
FC 10.12 www.hafele.com/us
