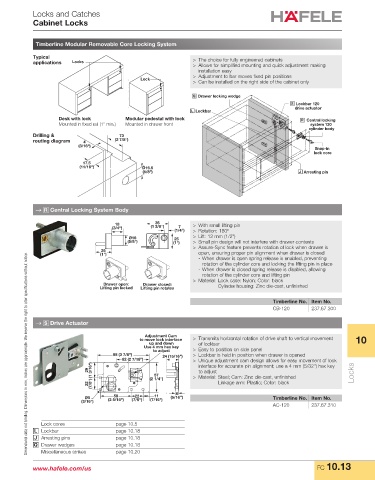

Page 1035 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet Locks

Timberline Modular Removable Core Locking System

Typical > The choice for fully engineered cabinets
applications Locks > Allows for simplified mounting and quick adjustment making
installation easy
> Adjustment to bar moves fixed pin positions
Lock
> Can be installed on the right side of the cabinet only
Q Drawer locking wedge
S Lockbar 120
drive actuator
L Lockbar
Desk with lock Modular pedestal with lock R Central locking
Mounted in fixed rail (1" min.) Mounted in drawer front system 120
cylinder body
73
L Drilling & (2 7/8")
routing diagram
Side Panel 4
(3/16")
Snap-in
AA lock core
A
17.5
(11/16") Ø16.5
(5/8") J Arresting pin
Lock
Strip
1" min.
J
→ R Central Locking System Body

18 35 > With small lifting pin
7
Q Drawer Wedge (3/4") (1 3/8") (1/4") > Rotation: 180º
Ø16 25 > Lift: 12 mm (1/2")
(5/8") (1") > Small pin design will not interfere with drawer contents
> Assure-Sync feature prevents rotation of lock when drawer is
25
(1") open, ensuring proper pin alignment when drawer is closed
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
- When drawer is open spring release is enabled, preventing
rotation of the cylinder core and locking the lifting pin in place
- When drawer is closed spring release is disabled, allowing
rotation of the cylinder core and lifting pin
> Material: Lock case: Nylon; Color: black
Drawer open: Drawer closed: Cylinder housing: Zinc die-cast, unfinished
Lifting pin locked Lifting pin rotates
Timberline No. Item No.
CB-120 237.67.300

→ S Drive Actuator

Adjustment Cam
to move lock interface > Transmits horizontal rotation of drive shaft to vertical movement 10
up and down of lockbar
Use 4 mm hex key
to adjust > Easy to position on side panel
98 (3 7/8") 24 (15/16") > Lockbar is held in position when drawer is opened
62 (2 7/16") > Unique adjustment cam design allows for easy movement of lock
29 (1 3/16") 57 interface for accurate pin alignment; use a 4 mm (5/32") hex key Locks
to adjust
> Material: Steel; Cam: Zinc die-cast, unfinished
22 (7/8") (2 1/4") Linkage arm: Plastic; Color: black
8
Ø5 59 22 11 (5/16") Timberline No. Item No.
(3/16") (2 5/16") (7/8") (7/16")
AC-120 237.67.310

Lock cores page 10.5
L Lockbar page 10.18
J Arresting pins page 10.18
Q Drawer wedges page 10.18
Miscellaneous strikes page 10.20

www.hafele.com/us FC 10.13
