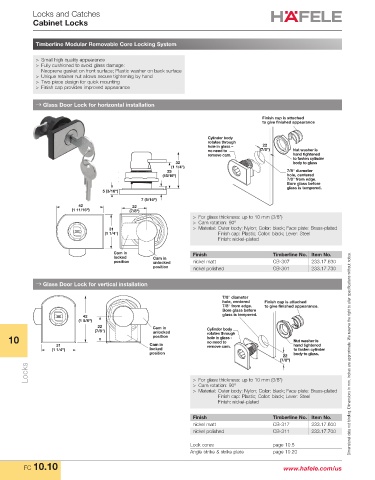

Locks and Catches
Cabinet Locks

Timberline Modular Removable Core Locking System

> Small high quality appearance
> Fully cushioned to avoid glass damage:
Neoprene gasket on front surface; Plastic washer on back surface
> Unique retainer nut allows secure tightening by hand
> Two piece design for quick mounting
> Finish cap provides improved appearance

→ Glass Door Lock for horizontal installation

Finish cap is attached
to give finished appearance

Cylinder body
rotates through
hole in glass – 22
no need to (7/8") Nut washer is
remove cam. hand tightened
to fasten cylinder
32 body to glass
(1 1/4")
23 7/8" diameter
(15/16") hole, centered
7/8" from edge.
Bore glass before
glass is tempered.
5 (3/16")
7 (5/16")
42 22
(1 11/16") (7/8")
> For glass thickness: up to 10 mm (3/8”)
> Cam rotation: 90º
31 > Material: Outer body: Nylon; Color: black; Face plate: Brass-plated
(1 1/4") Finish cap: Plastic; Color: black; Lever: Steel
Finish: nickel-plated
Cam in Finish Timberline No. Item No.
locked Cam in
position unlocked nickel matt CB-307 233.17.630
position nickel polished CB-301 233.17.730

→ Glass Door Lock for vertical installation

7/8" diameter
hole, centered Finish cap is attached
7/8" from edge. to give finished appearance.
Bore glass before
42 glass is tempered.
(1 5/8")
22 Cam in
(7/8") unlocked Cylinder body
rotates through
10 position hole in glass - Nut washer is
no need to
31 Cam in remove cam. hand tightened
(1 1/4") locked to fasten cylinder
position body to glass. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
22
(7/8")
Locks
> For glass thickness: up to 10 mm (3/8")
> Cam rotation: 90º
> Material: Outer body: Nylon; Color: black; Face plate: Brass-plated
Finish cap: Plastic; Color: black; Lever: Steel
Finish: nickel-plated

Finish Timberline No. Item No.
nickel matt CB-317 233.17.600
nickel polished CB-311 233.17.700

Lock cores page 10.5
Angle strike & strike plate page 10.20
