Locks and Catches
Cabinet Locks

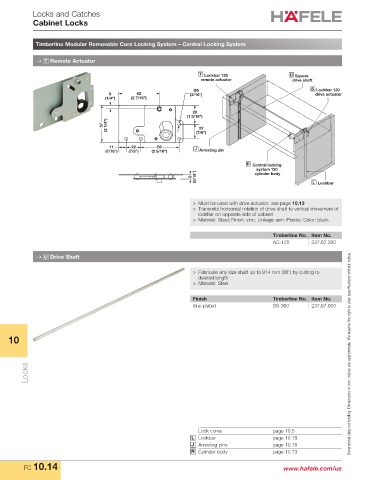

Timberline Modular Removable Core Locking System – Central Locking System

→ T Remote Actuator

T Lockbar 125 U Square
remote actuator drive shaft
Ø5 S Lockbar 120
6 62 (3/16") drive actuator
(1/4") (2 7/16")
29
(1 3/16")
(2 1/4")
57 (7/8")
22

11 22 59 J
(7/16") (7/8") (2 5/16") Arresting pin
R Central locking
system 120
(5/16") cylinder body
8 L Lockbar

> Must be used with drive actuator, see page 10.13
> Transmits horizontal rotation of drive shaft to vertical movement of
lockbar on opposite side of cabinet
> Material: Steel; Finish: zinc; Linkage arm: Plastic; Color: black

Timberline No. Item No.
AC-125 237.67.320

→ U Drive Shaft

> Fabricate any size shaft up to 914 mm (36") by cutting to
desired length
> Material: Steel

Finish Timberline No. Item No.
zinc-plated SS-360 237.67.900

10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Locks

Lock cores page 10.5
L Lockbar page 10.18
J Arresting pins page 10.18
R Cylinder body page 10.13
FC 10.14 www.hafele.com/us
