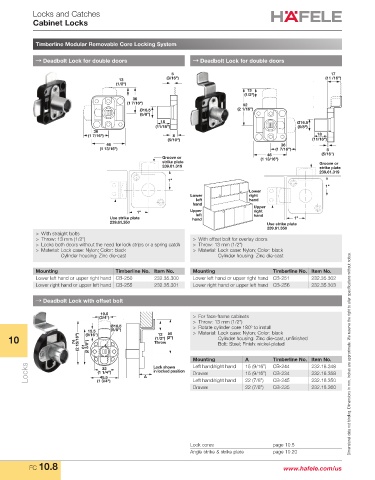

Locks and Catches
Cabinet Locks

Timberline Modular Removable Core Locking System

→ Deadbolt Lock for double doors → Deadbolt Lock for double doors
5 17
13 (3/16") (11 /16")
(1/2")
13
(1/2")
36
(1 7/16") 52
Ø16.5 (2 1/16")
(5/8”)
18 Ø16.5
(11/16") (5/8")
36
(1 7/16") 8 18
(5/16") (11/16")
46 36
(1 13/16") (1 7/16") 8
46 (5/16")
Groove or (1 13/16")
strike plate Groove or
239.61.319 strike plate
239.61.319
1"
1"
Lower
Lower right
left hand
hand Upper
1" Upper right
left
Use strike plate hand hand 1"
239.61.350 Use strike plate
239.61.350
> With straight bolts
> Throw: 13 mm (1/2") > With offset bolt for overlay doors
> Locks both doors without the need for lock strips or a spring catch > Throw: 13 mm (1/2")
> Material: Lock case: Nylon; Color: black > Material: Lock case: Nylon; Color: black
Cylinder housing: Zinc die-cast Cylinder housing: Zinc die-cast

Mounting Timberline No. Item No. Mounting Timberline No. Item No.
Lower left hand or upper right hand CB-250 232.35.300 Lower left hand or upper right hand CB-251 232.35.302
Lower right hand or upper left hand CB-255 232.35.301 Lower right hand or upper left hand CB-256 232.35.303

→ Deadbolt Lock with offset bolt

19.5
(3/4") > For face-frame cabinets
> Throw: 13 mm (1/2")
Ø16.5 > Rotate cylinder core 180º to install
15.5 (5/8") 12 50 > Material: Lock case: Nylon; Color: black
(9/16")
10 74 (2 15/16") 61 (2 3/8") Throw (2") Cylinder housing: Zinc die-cast, unfinished
(1/2")
Bolt: Steel; Finish: nickel-plated

Mounting A Timberline No. Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks (1 1/4") A Lock shown Left hand/right hand 15 (9/16”) CB-244 232.18.348
32
in locked position
15 (9/16”)
CB-234
Drawer
232.18.358
45.5
CB-245
Left hand/right hand
232.18.350
22 (7/8”)
(1 3/4")
Drawer 22 (7/8”) CB-235 232.18.360
Lock cores page 10.5
Angle strike & strike plate page 10.20
