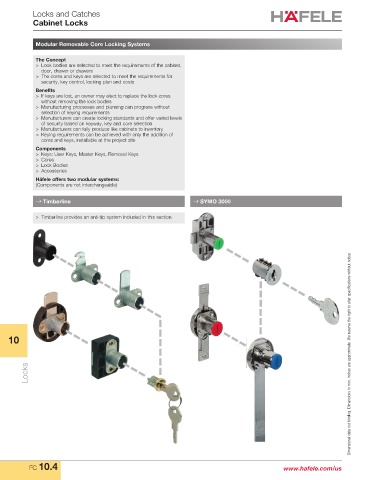

P. 1026
Locks and Catches
Cabinet Locks
Modular Removable Core Locking Systems
The Concept
> Lock bodies are selected to meet the requirements of the cabinet,
door, drawer or drawers
> The cores and keys are selected to meet the requirements for
security, key control, locking plan and costs
Benefits
> If keys are lost, an owner may elect to replace the lock cores
without removing the lock bodies
> Manufacturing processes and planning can progress without
selection of keying requirements
> Manufacturers can create locking standards and offer varied levels
of security based on keyway, key and core selection
> Manufacturers can fully produce like cabinets to inventory
> Keying requirements can be achieved with only the addition of
cores and keys, installable at the project site
Components
> Keys: User Keys, Master Keys, Removal Keys
> Cores
> Lock Bodies
> Accessories
Häfele offers two modular systems:
(Components are not interchangeable)
→ Timberline → SYMO 3000
> Timberline provides an anti-tip system included in this section
10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks
FC 10.4 www.hafele.com/us
